Subsequent Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

After replacing or repairing the PDK transmission, the transmission control unit must be calibrated using PIWIS Tester II 9818 → "major calibration"

Install engine with transmission.
→ Installing Engine .
Screw in and tighten screw -2- on engine/transmission flange screws -1- .
Use Torx socket-wrench insert (E18).

Tightening torque 85 Nm (63 ftlb.)

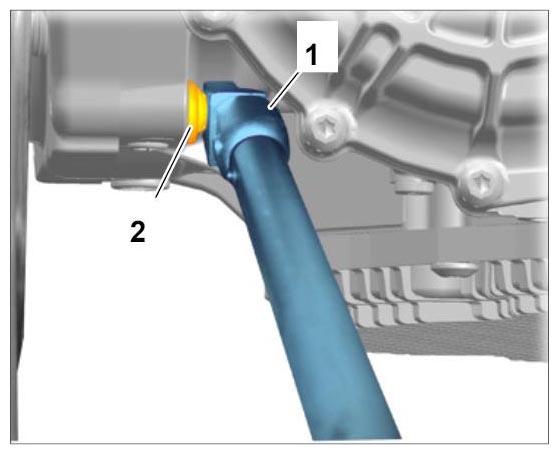

Fig 1: Identifying Lower Transmission Flange Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
