Mounting Porsche Doppelkupplung (PDK)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Check the diaphragm spring on the flywheel for mechanical damage before installing it.
A damaged flywheel must not be installed!

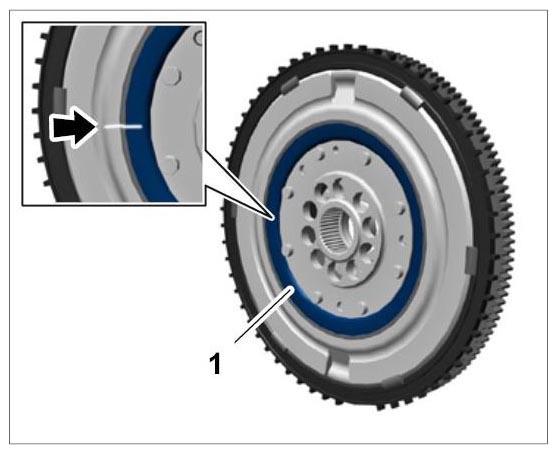

Check diaphragm spring -1- on the flywheel for damage.
There must be no dents or mechanical damage!
1. 1.1. The flywheel must be replaced if the diaphragm spring is damaged -arrow- .

  Fig 1: Locating Spring On Flywheel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  NOTE:
  Mechanical overload of components
  - Component will be damaged irreparably
  → Observe guidelines for assembly and disassembly

  Information

  Replace flange screws if necessary.
Fit the Porsche Doppelkupplung (PDK) using a workshop crane.
1. 2.1. First, position and fit screws -3 to 6- . Then fit screws -1 and 2- .
2. 2.2. Tighten screws -1, 3, 4, 5, 6- .
  Tightening torque 85 Nm (63 ftlb.)

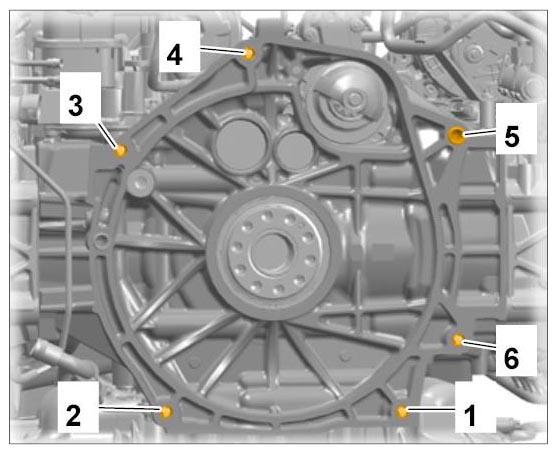

  Fig 2: Identifying Flange Screws On Transmission
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten screw -2- following installation in the vehicle using a Torx socket-wrench insert.

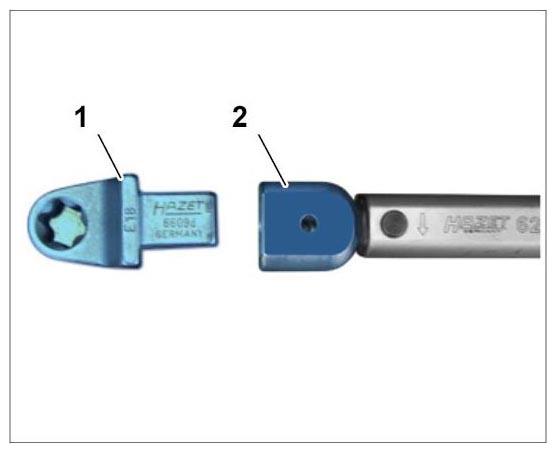

Use Torx socket-wrench insert E18 (VAG 1332/10).
1. Torx socket-wrench insert E18 - VAG 1332/10
2. Torque wrench Nr.90 Pos.4

  Fig 3: Identifying Torx Ring-Wrench E18
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove restraining straps.

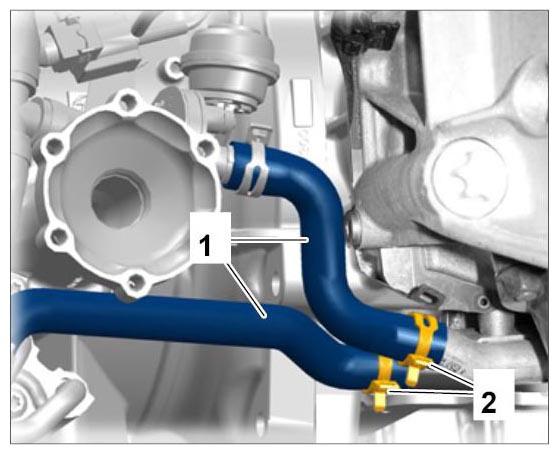

Connect coolant hoses -1- .
1. 5.1. Close spring band clamps -2- and remove hose clamping pliers.

  Fig 4: Identifying Coolant Hoses For Engine
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

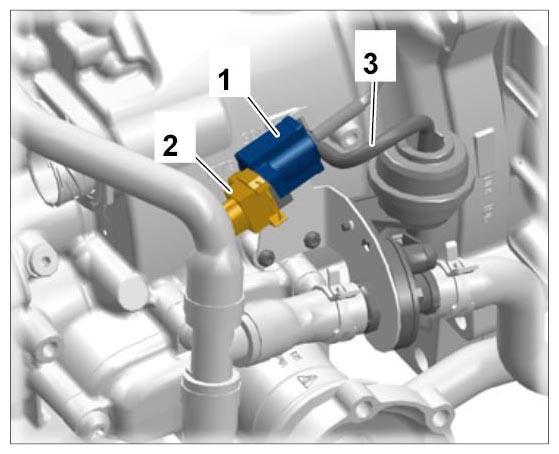

Clip in control valve -2- and connect vacuum line -3- .

Fig 5: Identifying Control Valve And Vacuum Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect cable plug for pulse sender.

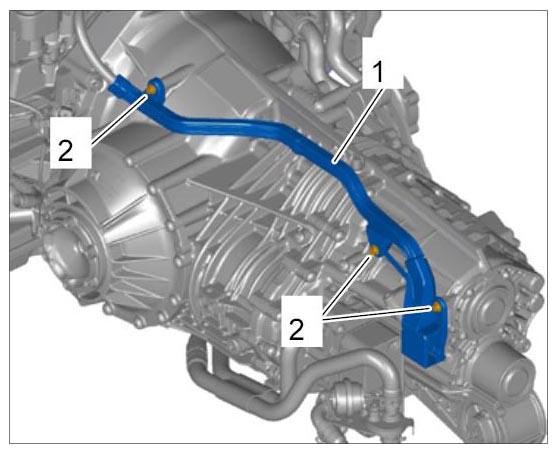

Fit cable duct -1- for B+ line.
1. 8.1. Route and secure cable duct on the transmission. Fit and tighten three external Torx screws (M6 x 16) -2- .
  Tightening torque 10 Nm (7.5 ftlb.)

  Fig 6: Identifying Cable Duct For B+ Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
