Removing Locking Cable

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

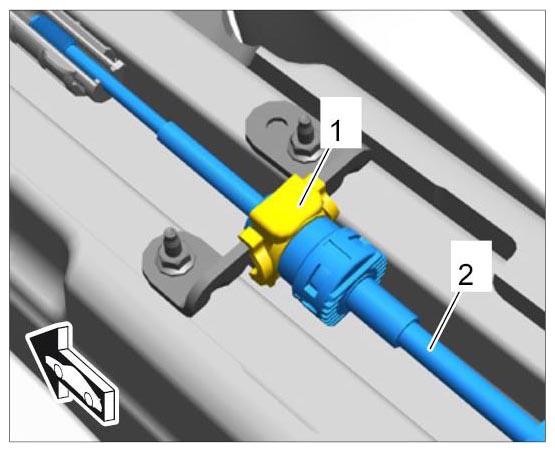

Disconnect locking cable at the centre tunnel.
1. 1.1. Press release -1- and unclip the locking cable -2- from the support.

  Fig 1: Disconnecting Lock Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

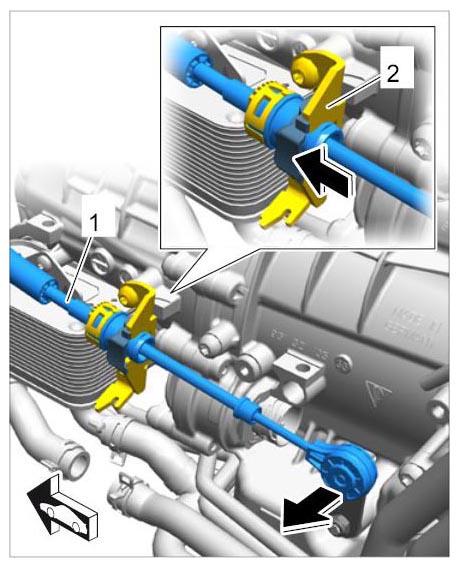

Disconnect locking cable at the PDK transmission.
1. 2.1. Press the ball joint off the parking lock lever using disassembly tool Nr.21 .
2. 2.2. Release the locking cable -1- on the support -2- and pull it out.

  Fig 2: Disconnecting Lock Cable On Transmission
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

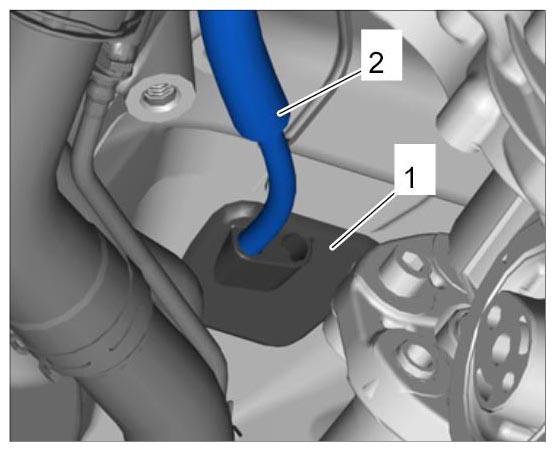

Press the rubber sleeve for the locking cable -1- out of the body guide and remove the locking cable -2- from the vehicle by guiding it downwards.

Fig 3: Identifying Rubber Sleeve For Locking Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
