Removing tilt sensor control unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The tilt sensor is integrated into the tilt control unit and cannot be separately replaced.

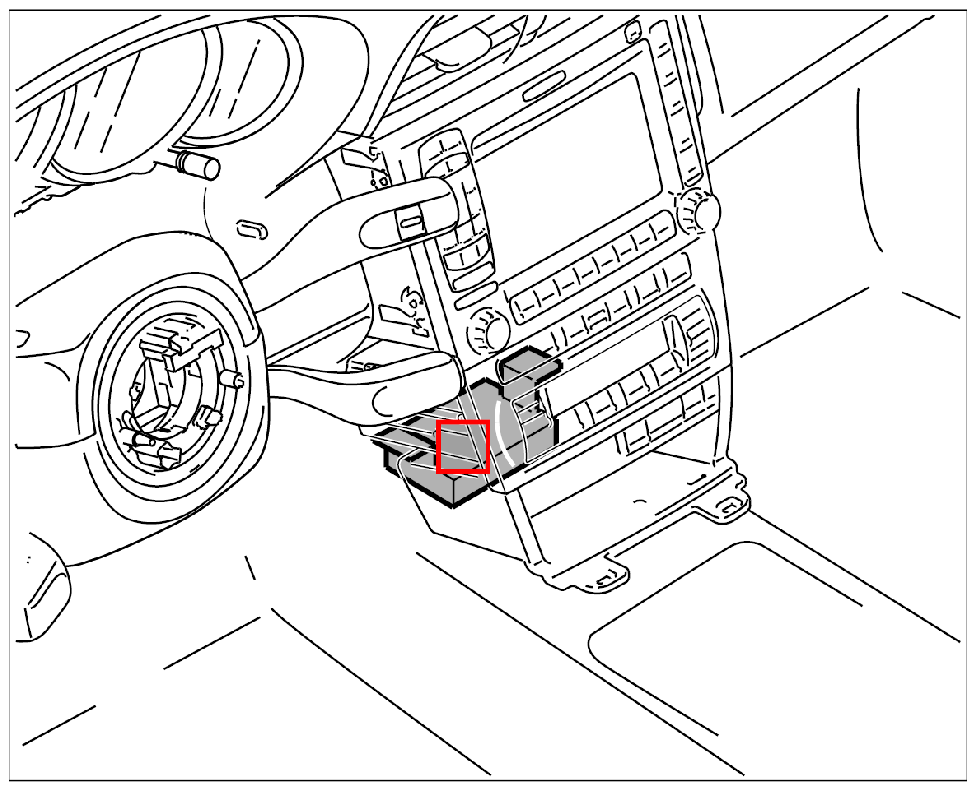

Fig 1: Identifying Tilt Sensor Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Switch off ignition and remove ignition key.
Unscrew the two fastening screws -1- and remove the tilt sensor control unit.

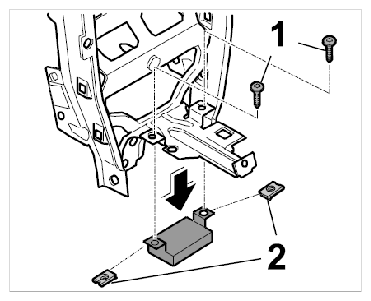

Fig 2: Removing Tilt Sensor Control Unit Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the two speed nuts -2- from the tilt sensor control unit.
Release connector for tilt sensor control unit -arrow a- and remove.

Fig 3: Removing Tilt Sensor Control Unit Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
