Installing tilt sensor control unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Push plug onto tilt sensor control unit until it is felt to engage.

Fig 1: Installing Tilt Sensor Control Unit Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check sheetmetal nuts for deformation, replacing if necessary. Push the two sheetmetal nuts -2- onto the tilt sensor control unit.

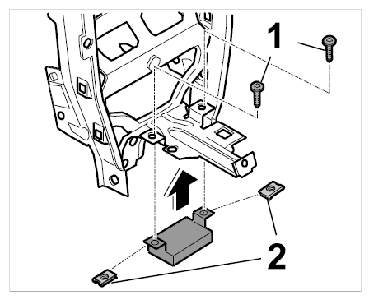

Fig 2: Tightening Tilt Sensor Control Unit Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position tilt sensor control unit -1- and secure with both fastening nuts. → Tightening torque: 3 ftlb.
