Assembling remote control

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

In the event of a complaint (remote control buttons too easily pressed), the silicone pad and buttons can be replaced with modified spare parts.

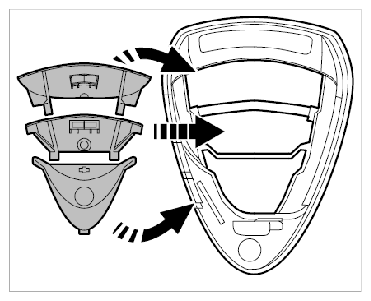

Engage new buttons in the remote control housing.

Fig 1: Installing Remote Control Housing Buttons
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The PCB should only be held carefully at the edge.

Immediately after removal, insert the PCB back into the silicone pad and assemble the remote control.
Insert PCB -2- into the new silicone pad -1- .

Fig 2: Identifying PCB And Silicon Pads
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert silicone pad -1- with PCB into the remote control housing.

Fig 3: Installing Silicon Pad Into Remote Control Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the cover on the bottom part of the remote control and press together until the cover clicks into place.

Fig 4: Installing Remote Control Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Test the remote control by pressing all the buttons one after the other.
