Installing switch console

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push electric connectors onto the switch console until the connectors engage securely. The number of connectors can vary, depending on equipment.
  2. Slide the switch console into the centre console until the switch console engages securely.

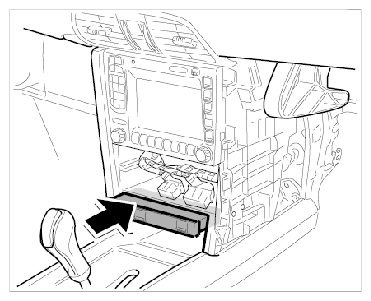

    Fig 1: Installing Switch Console
    G09830997Courtesy of PORSCHE CARS NORTH AMERICA, INC.
