Removing Light Bulb For Reversing Light

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

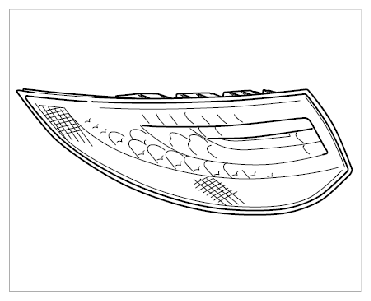

Fig 1: Overview Of Reversing Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

If the tail light is opened, the seals for the central connector and cover must be replaced.

The left tail light is described here.

Unscrew and remove the seven fastening screws -1- on the back of the tail light.

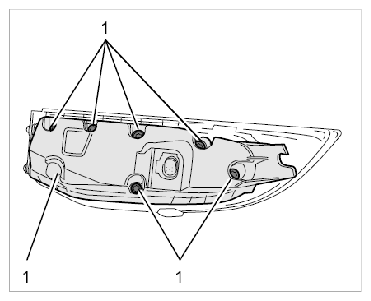

Fig 2: Opening Tail Light Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover.
Pull off the two electric connectors -2- and -3- on the light bulb.
Unscrew the two fastening screws -4- for the light bulb.
Remove light bulb -5- from the tail light.

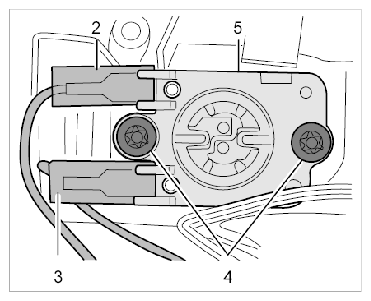

Fig 3: Pulling Off Connectors And Unscrewing Fastening Screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull off the seal around the central connector -6- on the tail light.

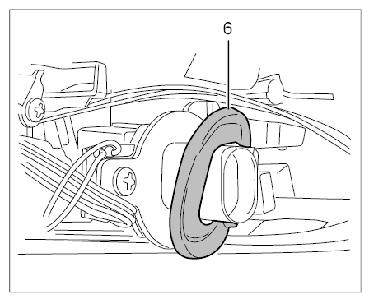

Fig 4: Pulling Off Seal For Central Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Use a screwdriver to lever out the rubber seal -7- on the cover of the tail light and pull it out of the cover.

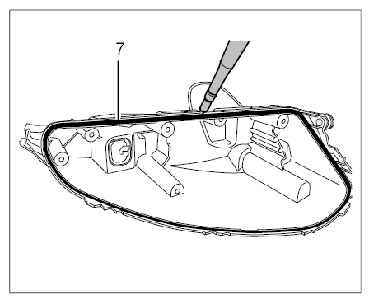

Fig 5: Pulling Rubber Seal Out Of Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
