Removing Halogen Bulb (High Beam)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

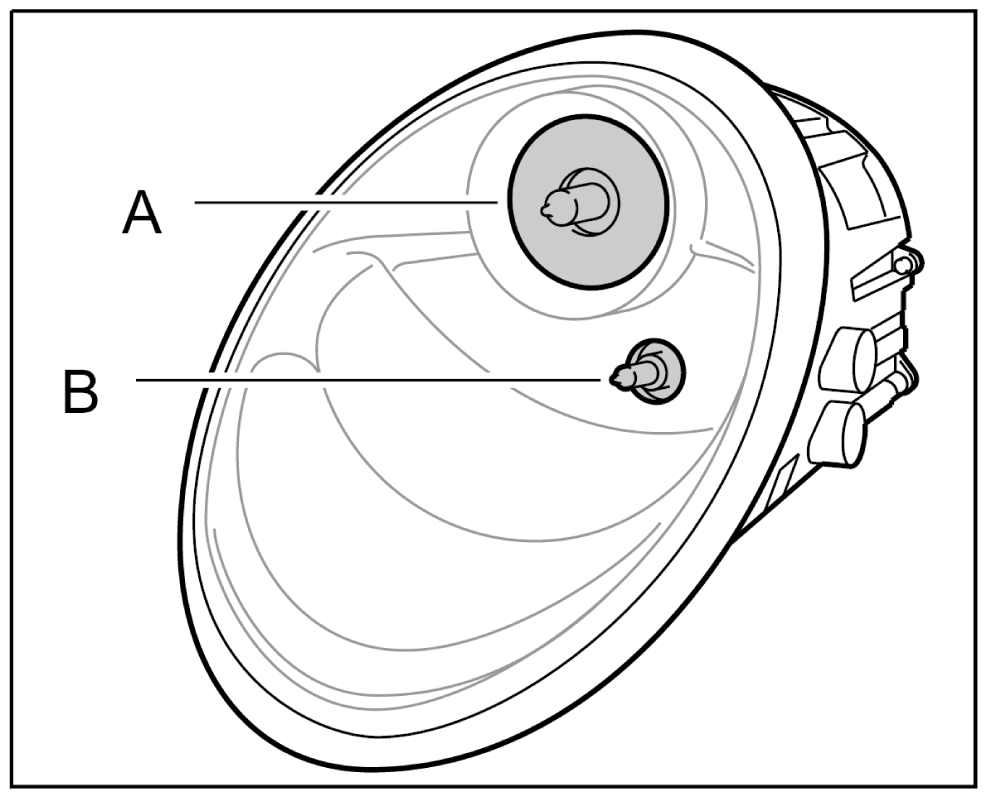

Fig 1: Identifying Installation Position Of Halogen Bulb (High Beam)
G09830714Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Gas-discharge headlight
  2. Halogen bulb (high beam)
  1. Unscrew bayonet lock for halogen bulb anti-clockwise.

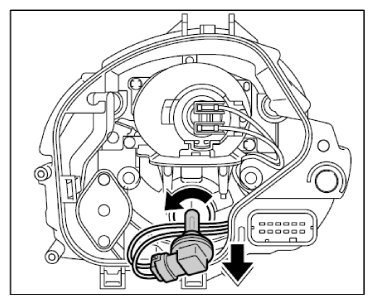

    Fig 2: Removing Bayonet Lock
    G09830715Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip electric connector -a-  and disconnect it.

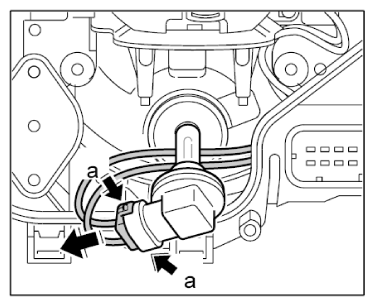

    Fig 3: Unplugging Electric Connector
    G09830716Courtesy of PORSCHE CARS NORTH AMERICA, INC.
