Installing Parking-Brake Lever

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install parking-brake lever -1-  . Use new fastening nuts -4-  and tighten them to 23 Nm (17 ftlb.).
  2. Engage brake cable -5-  . Connect plug to switch -3-  .

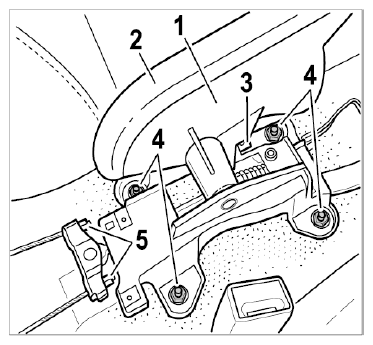

    Fig 1: Installing Parking-Brake Lever
    G09826246Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove lock pin on mounting saddle if necessary (only fitted on new parking-brake levers/used to prevent automatic readjustment of the parking-brake cable).
  4. Tighten and loosen the parking-brake lever a number of times (due to automatic readjustment of the parking-brake cable). Then check the free play of the parking-brake lever. If there is too much free play, adjust the parking-brake shoes.

    Check the free play of the parking-brake lever (permissible value) and adjustment specification of the parking brake shoes, see → 468316 ADJUSTING THE PARKING-BRAKE SHOES .
