Disassembling Remote Control

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Information

In the event of a complaint (remote control buttons too easily pressed), the silicone pad and buttons can be replaced with modified spare parts.

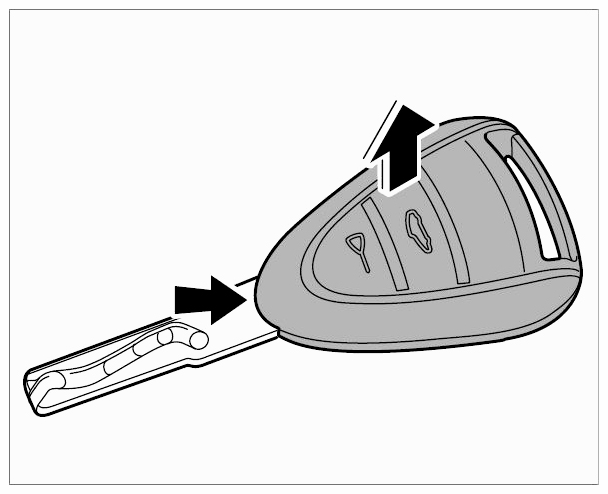

Insert a small screwdriver between the cover and the lower part of the remote control -arrow- and carefully lift the lid off.

Fig 1: Removing Cover Of Remote Control
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

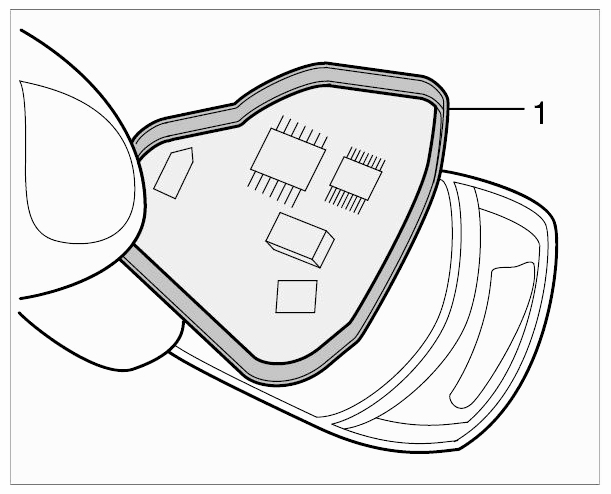

Remove silicone pad -1- with the printed circuit board (PCB) from the remote control housing.

Fig 2: Removing Silicone Pad From Remote Control Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

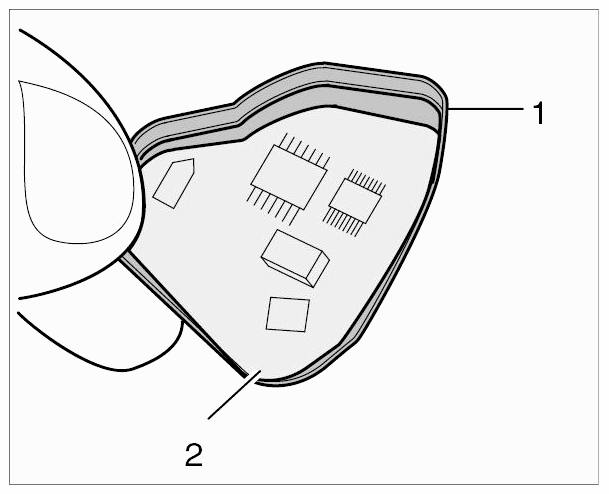

Remove PCB -2- from the silicone pad -1- .

Fig 3: Inserting Silicone Pad With PCB In Remote Control Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

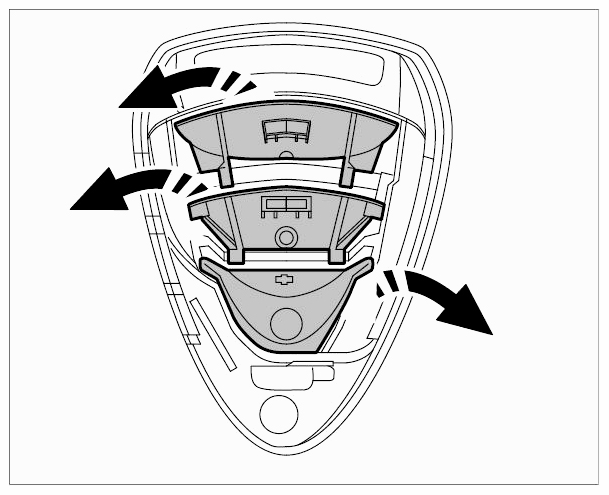

Lift up buttons (two or three, depending on the vehicle type) and pull them out of the remote control housing.

Fig 4: Removing Buttons From Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
