Removal Instructions For Output Shaft
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
Information
Circlips of different sizes and thicknesses are used. For this reason, the individual circlips must be marked (e.g. with numbers). The thickness of the circlip must be determined again if a directly affected component is replaced.
Information
When replacing the taper roller bearings, determine the installation position before removing the output shaft (actual measurement → DETERMINING THE INSTALLATION POSITION OF THE OUTPUT SHAFT (ACTUAL MEASUREMENT) ).

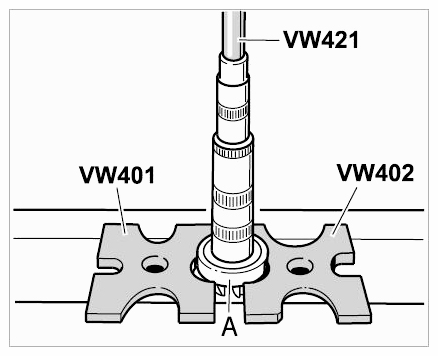

- Use the outer bearing ring -A- to press off the taper roller bearing.
