Installing Parking-Brake Lever

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install parking-brake lever -1-  . Use new fastening nuts -4-  and tighten them to 23 Nm (17 ftlb.).

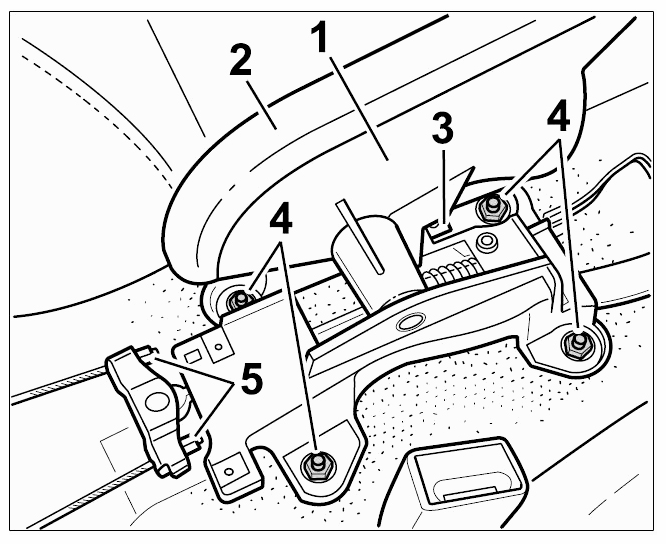

    Fig 1: Identifying Parking-Brake Lever Mounting Point
    G09587867Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Engage brake cable -5-  . Connect plug to switch -3-  .
  3. Remove lock pin on mounting saddle if necessary (only fitted on new parking-brake levers/used to prevent automatic readjustment of the parking-brake cable).
  4. Tighten and loosen the parking-brake lever a number of times (due to automatic readjustment of the parking-brake cable). Then check the free play of the parking-brake lever. If there is too much free play, adjust the parking-brake shoes.

    Check the free play of the parking-brake lever (permissible value) and adjustment specification of the parking brake shoes, see → 468316 ADJUSTING THE PARKING-BRAKE SHOES .
