Checking Power-Steering Fluid Level

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Increased risk of accidents and material damage if too much Pentosin CHF 202 is filled in or if Pentosin CHF 202 comes into contact with the coolant hoses when filling or topping up.

It is possible to overfill the system, causing Pentosin CHF 202 to overflow onto coolant hoses and other components.
1. The engine must be run for approx. 20 seconds prior to the fluid level check. Multiple steering operations (manoeuvring) will change the fluid level in the reservoir. Check the fluid level.
2. If coolant hoses come into contact with Pentosin, clean them thoroughly with water IMMEDIATELY.
3. Replace visibly swollen coolant hoses.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

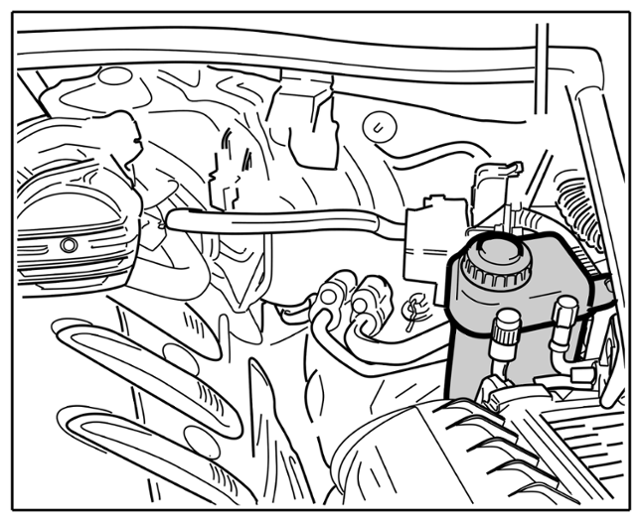

Reservoir in engine compartment (shown as an example)

The reservoir is located in the engine compartment, at the left.
A dipstick with MIN/MAX markings is attached to the reservoir cap. The markings are for a fluid level on a cold engine (approx. 20°C).
The MAX marking can easily be exceeded at higher temperatures.

Check the fluid level (Pentosin CHF 202) when the engine is not running and when it is cold (approx. 20°C).

The fluid level must be between the MIN and MAX markings > Dipstick with MIN/MAX marking (shown as an example) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

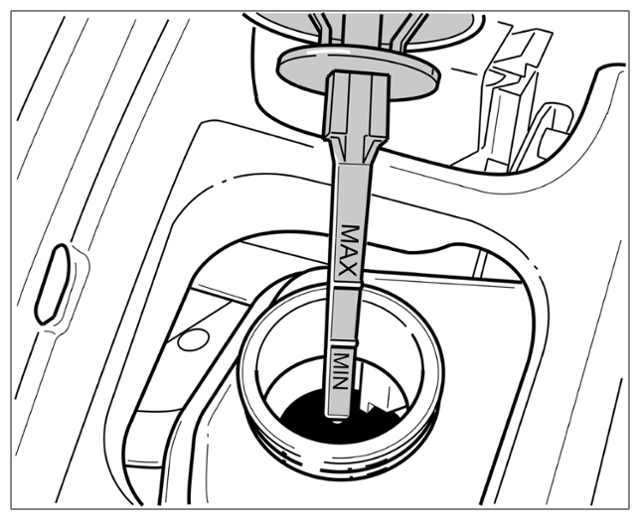

Dipstick with MIN/MAX marking (shown as an example)

Start the engine and run it at idle speed for approx. 20 seconds. Switch off the engine.
Open the engine cover and reservoir.
Wipe off the dipstick. Close the cap and then open it again. The fluid level must be in the indicated range (MIN/MAX level at approx. 20°C). Top up with Pentosin if necessary.
