Installing Steering Gear
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Steering-angle sensor not calibrated or calibrated incorrectly
- Unexpected vehicle handling
- Steering-angle sensor does not function
- Malfunction in steering-angle sensor
- After working on wheel suspension parts, when replacing the steering-angle sensor, and after changing the wheel alignment values, calibrate the steering-angle sensor using the PIWIS Tester.
- Keep the front wheels in straight-ahead position on the measuring platform during calibration.
- For vehicles with electromechanical steering, also re-teach the electric steering lock settings.
Information
- When topping up or filling in Pentosin, make sure that it does not come into contact with the coolant hoses. To avoid overflow caused by overfilling, observe the instructions
> 48 Test and assembly work on power steering.
- If coolant hoses come into contact with Pentosin, clean them thoroughly with water IMMEDIATELY!
- Replace visibly swollen coolant hoses.

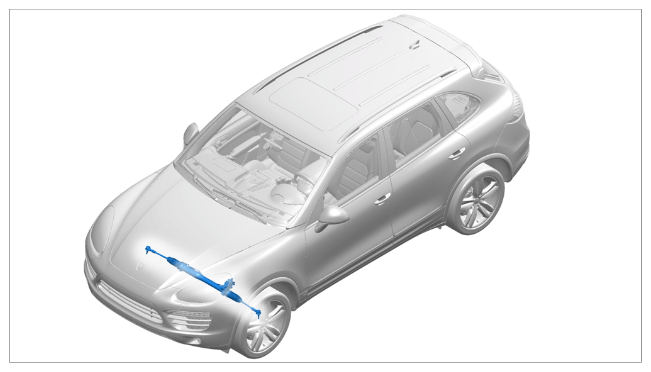

Installation position of steering gear
After fitting the pressure lines, fill steering hydraulics with Pentosin CHF 202 and bleed the steering system
> 48 Test and assembly work on power steering.
Replace all elastic bolts and lock nuts.
Tighten all threaded connections to the specified tightening torques
> 48 Tightening torques for steering.
Check and/or adjust toe-in
> 44 Suspension alignment, complete.
Calibrate steering-angle sensor
> 456019 Installing and removing steering-angle sensor.
