Removing Tie Rod

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The pictures shown in this document may differ from the original.

For easier removal of the outer tie rod joint, swivel the relevant wheel bearing housing so that the tie rod is fully extended. Remove the outer tie rod joints using > T10187 - ball joint puller (> Loosening tie-rod ball (shown as an example) ). When pressing out, screw lock nut on flush (protects the ball joint thread).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

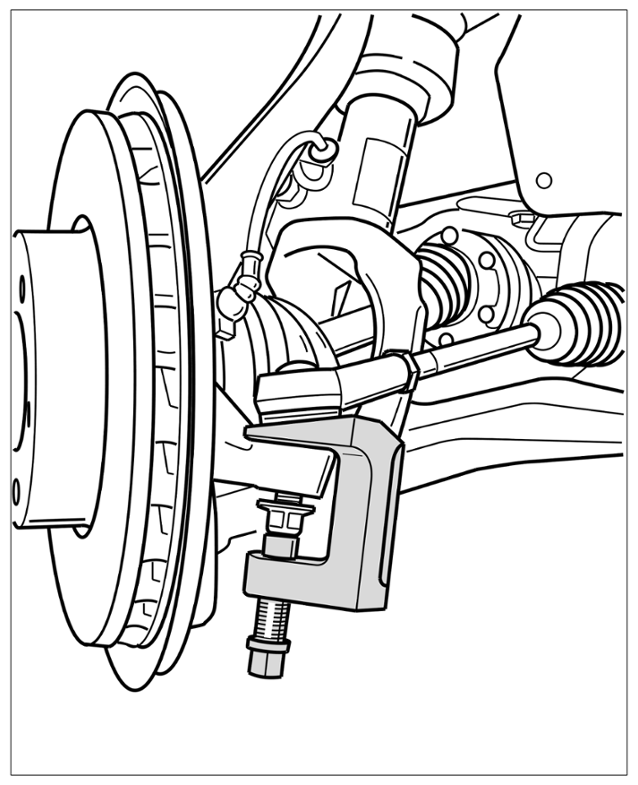

Loosening tie-rod ball (shown as an example)
Right tie rod:
Remove fastening screws -1- on the heat shield -2- near the joint boot -3- of the right tie rod.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

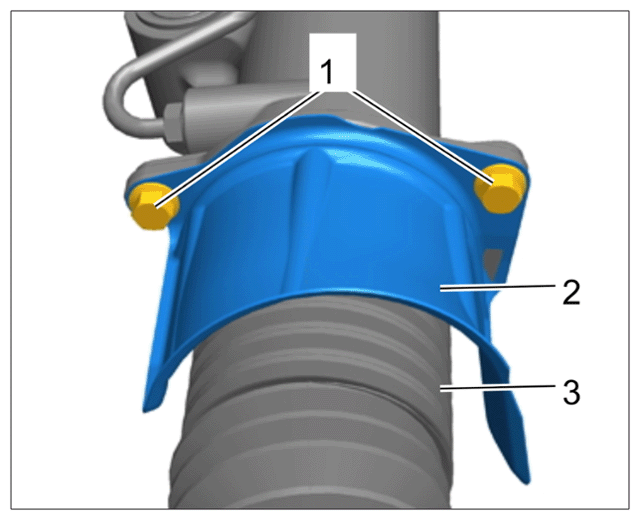

Heat shield for right tie rod
Pull out heat shield -2- .
Remove small clamp -arrow- on joint boot using > VAS 6890 - Spring Band Clamp Pliers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

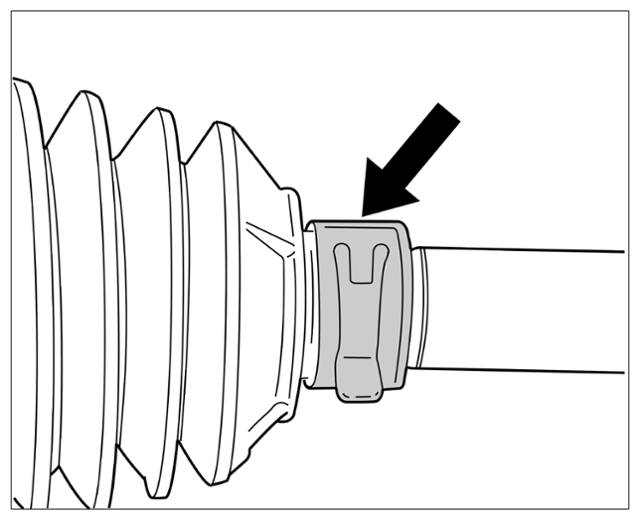

Small clamp on tie-rod joint boot (shown as an example)
Cut open and remove large clamp -arrow- on joint boot using side cutters.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

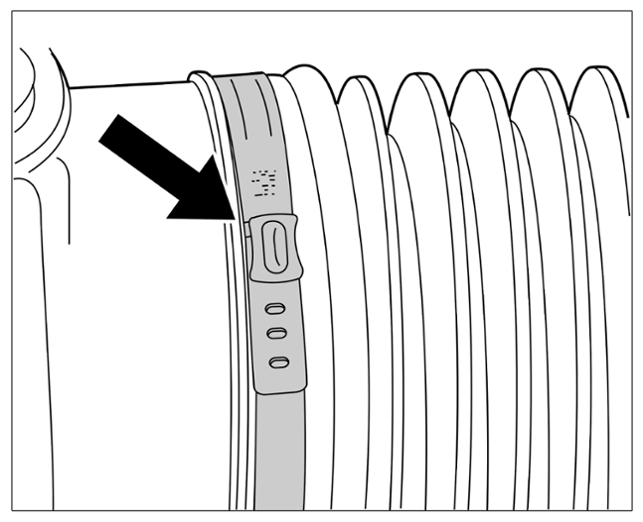

Large clamp on tie-rod joint boot (shown as an example)
Carefully pull the joint boot > Loosening joint boot (shown as an example) outwards until the axial joint is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

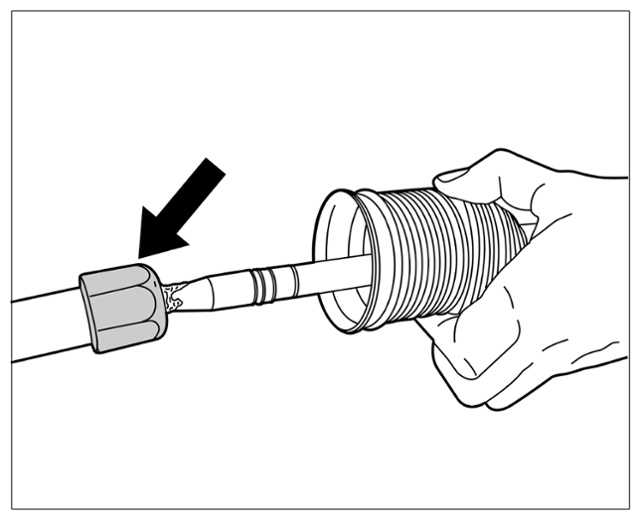

Loosening joint boot (shown as an example)
Remove axial joint -arrow- from the steering rack using > Nr.95-2 - open-jawed wrench insert a/f 38 for torque wrench and remove the complete tie rod.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

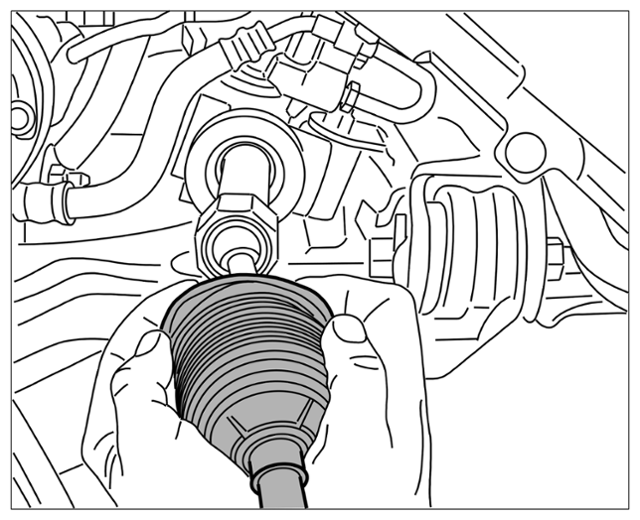

Removing axial joint (shown as an example)
