Installing Height Adjustment Control Unit
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

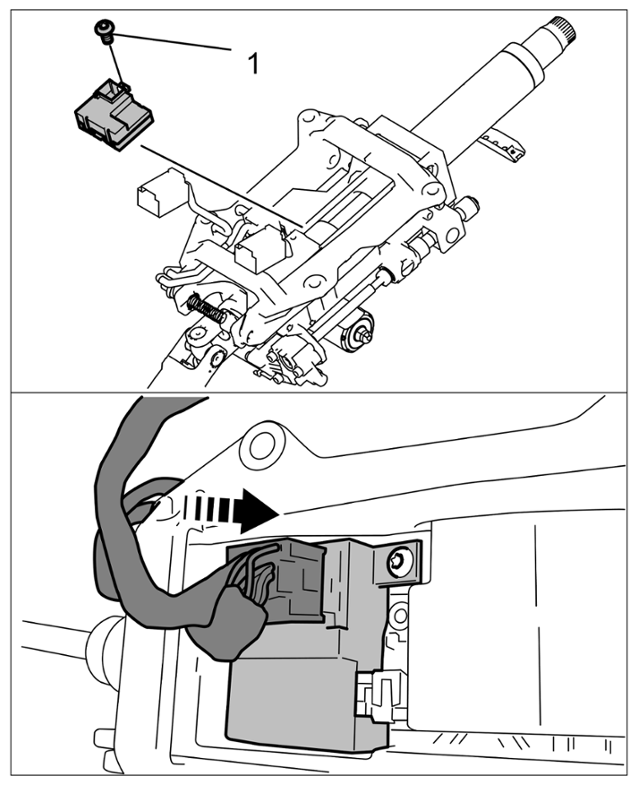

- Place height adjustment control unit in steering column.
- Secure height adjustment control unit using the fastening screw -1-
.
> Tightening torque 3.6 (2.6 ftlb.) Nm +/- 0.5 (0.35 ftlb.) Nm
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Installing control unit
- Insert electric connector at the control unit until it engages securely.
