Removing Steering Wheel

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn wheels to straight-ahead position.

    Information

    • Always release and disconnect the plug connections for the steering wheel heating and airbag cables before removing the steering wheel.
  2. If the vehicle has a heated steering wheel: release and pull off plug connection for steering wheel heater -1-  .

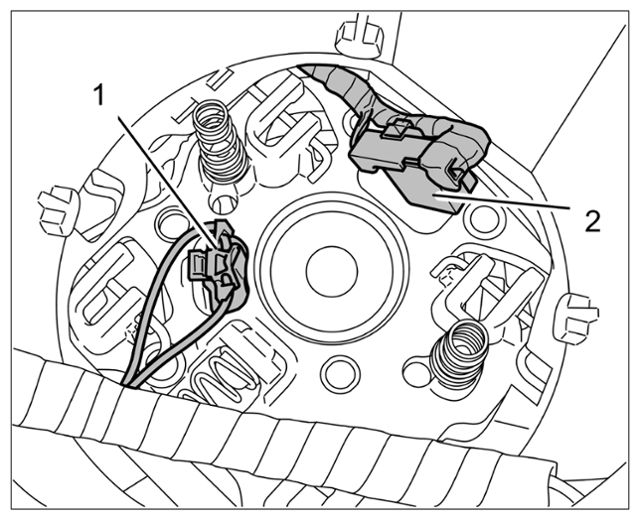

    G16330654Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off plug connections

  3. Release and pull off plug connection for airbag wire harness -2-  .

    Information

    Immediately after unscrewing the fastening screw and before  removing the steering wheel, it is essential to mark the position of the steering wheel and steering column -2-  .

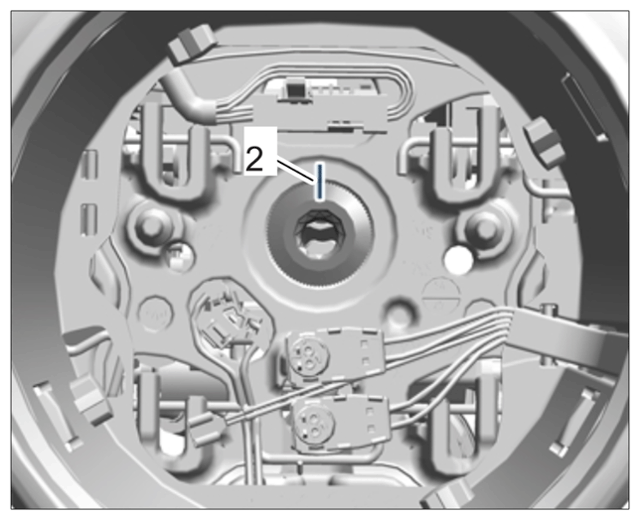

    G16330655Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Marking

    When reinstalling, this ensures that the steering wheel as well as the airbag spring are fitted back in the same position on the steering column.

  4. Unscrew fastening screw -1-  with > Nr.32 - multiple-tooth socket-wrench insert.

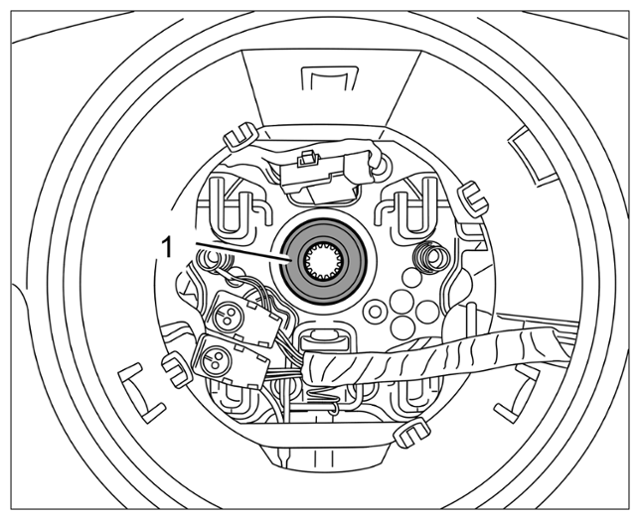

    G16330656Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Multiple-tooth screw

  5. Mark position of steering wheel.
  6. Remove steering wheel.
