Removing ELV Control Unit
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
- Remove the ignition key and switch off load before disconnecting or removing load.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

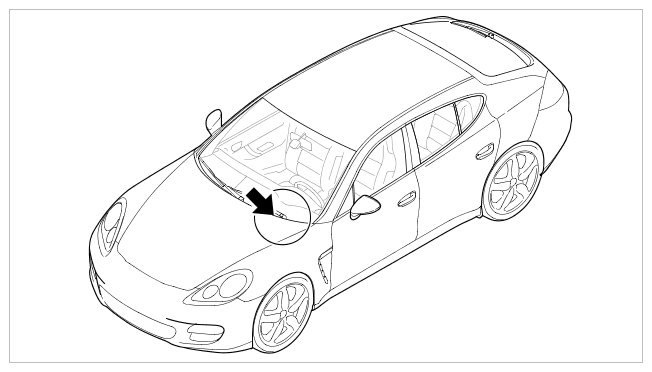

Installation position (shown on the Panamera)

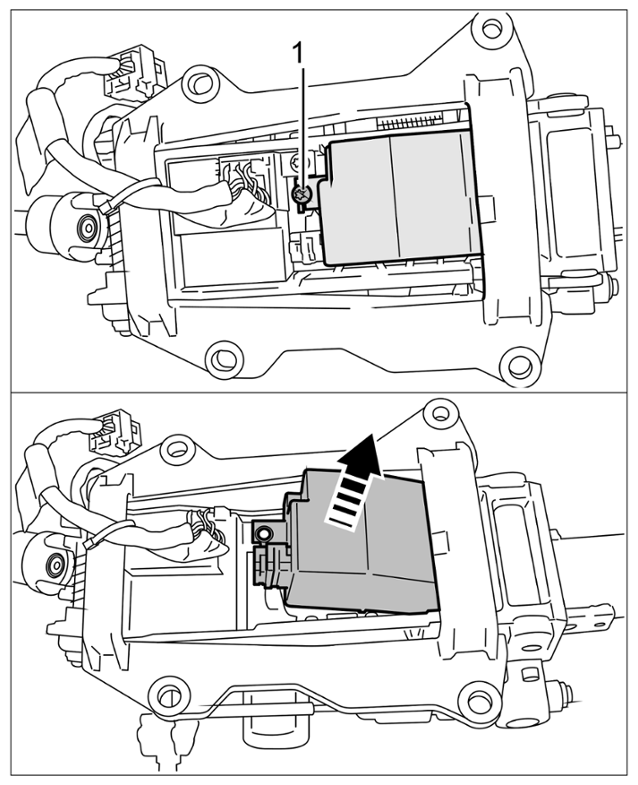

- Unscrew fastening screw -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing control unit
- Lift the ELV control unit and pull it out of the steering column.
