Installing ELV Control Unit

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

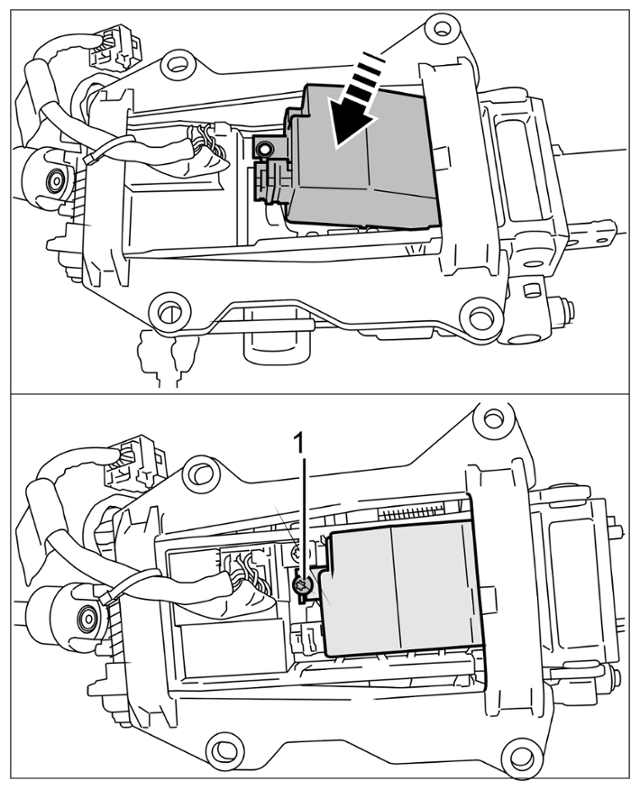

Place ELV control unit in steering column.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing ELV control unit
Secure ELV control unit with the fastening screw -1- .
> Tightening torque 3.6 (2.6 ftlb.) Nm +/- 0.5 (0.35 ftlb.) Nm
