Technical Values
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TIGHTENING TORQUE SPECIFICATIONS
| Location | Descri... | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Pulsation damper | Tightening torque | 41 (30 ftlb.) Nm | + 4 (3 ftlb.) Nm |
Model year
From 2010 To 2018
Model Line:
Cayenne (92A)
Concerns:
Replacing hydraulic pump for steering
Information:
Following a change in hydraulic pump supplier, new hydraulic pumps no longer come installed with a pulsation damper. For this reason, the pulsation damper must be removed from the old hydraulic pump and installed on the new hydraulic pump.
Component Overview:

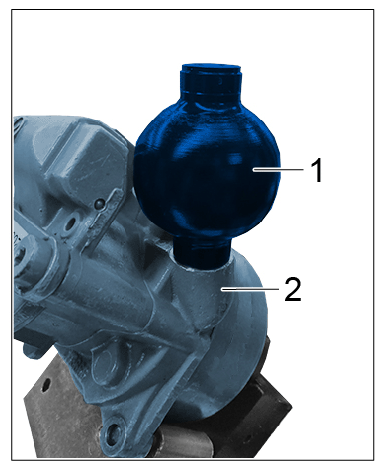

Hydraulic pump with pulsation damper
| 1 | Pulsation damper (no longer supplied with the hydraulic pump) |
| 2 | Hydraulic pump |
Action required:
Remove pulsation damper from the old hydraulic pump and install it on the new hydraulic pump.
Parts Info:
Overview of affected components:
| Part No. | Designation |
|---|---|
| 95831402201 | Tandem vane type pump Includes sealing ring for pulsation damper |
| 95831402211 | Tandem vane type pump Includes sealing ring for pulsation damper |
