Removing Front Trim Panel (Engine Compartment)

  1. Release expansion rivets -1-  and pull them out of the front trim panel (engine compartment) -2-  .

    Installation:  Align expansion rivets -1-  with the longitudinal axis of the vehicle before locking them.

  2. Lift up front trim panel (engine compartment) -2-  , guide it out at the pneumatic spring -3-  and remove it.

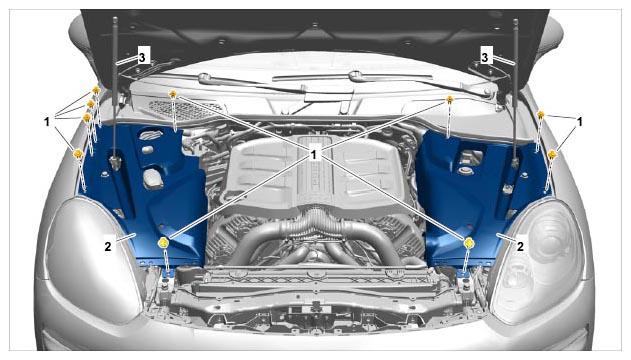

    Fig 1: Identifying Front Trim Panel (Engine Compartment)
    G09940625Courtesy of PORSCHE CARS NORTH AMERICA, INC.
