Installing Motor For Sun Blind

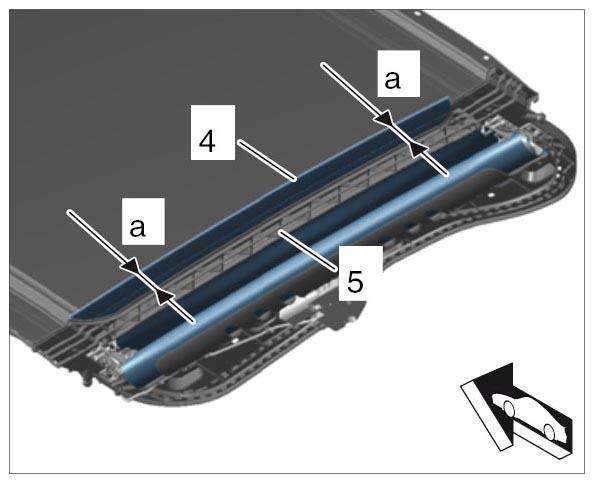

Align the sun blind so that it is parallel.
1. 1.1. The sun blind must be parallel before installing the motor.
2. 1.2. Set the same distance -a- from the front edge -4- and sun blind module -5- on both sides.

  Fig 1: Aligning Sun Blind
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully position the motor in installation position so that the bores for screwing the motor to the frame are aligned.
Information

Do not continue to turn the motor after inserting the pinion into the drive cables because if you do, the control bolts will move closer together.
Press the motor into position.

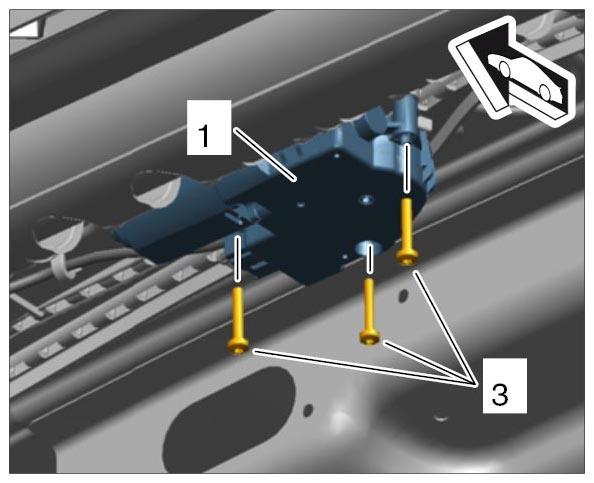

Screw in fastening screws -3- on sun blind motor -1- and tighten to Tightening Torque 3 Nm (2 ft. lb.) .

Fig 2: Installing Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

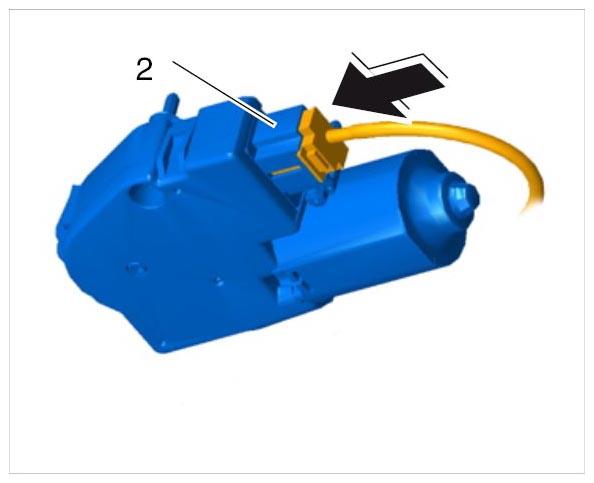

Connect plug connection for sun blind motor -2- .

Fig 3: Connecting Plug Connection To Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
