Installing Fabric Lining

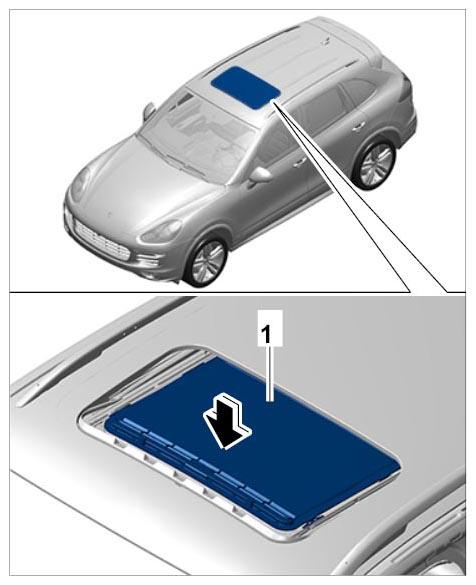

Fit fabric lining -1- from above.

Fig 1: Fitting Fabric Lining
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

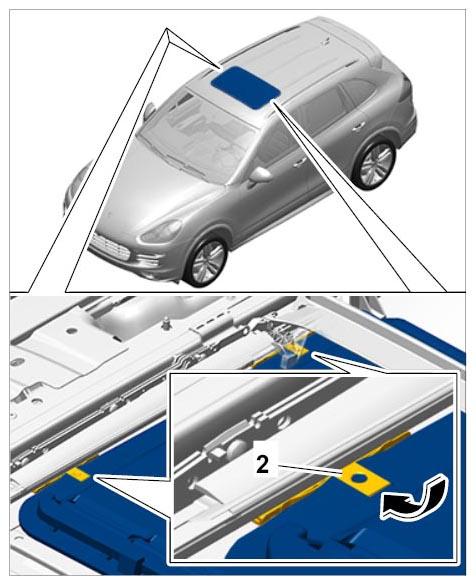

Insert guide elements -2- so that they are centered in the sliding-roof frame.

Fig 2: Inserting Guide Elements
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

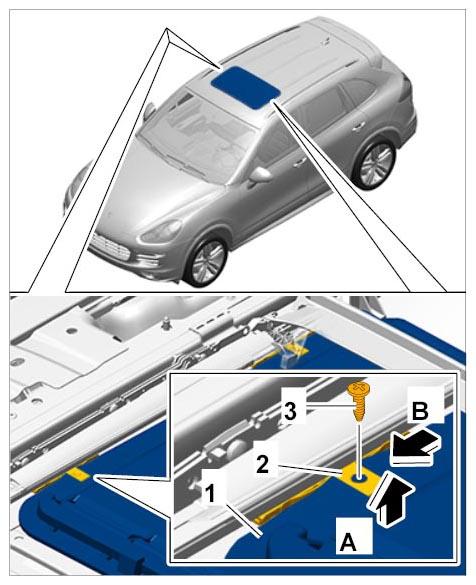

Secure fabric lining at the front.
1. 3.1. Lift up guide elements -2- (-A- ) and push them into the cut-outs in the fabric lining -1- (-B- ).
  Information
  - Never make alterations to the micro-self-locking screws, which have a negative effect on the bonding (e.g. using lubricant, loosening bolts and screwing them down again).
  - Replace micro-self-locking screws.
2. 3.2. Screw in front fastening screws -3- .

  Fig 3: Securing Fabric Lining At Front
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

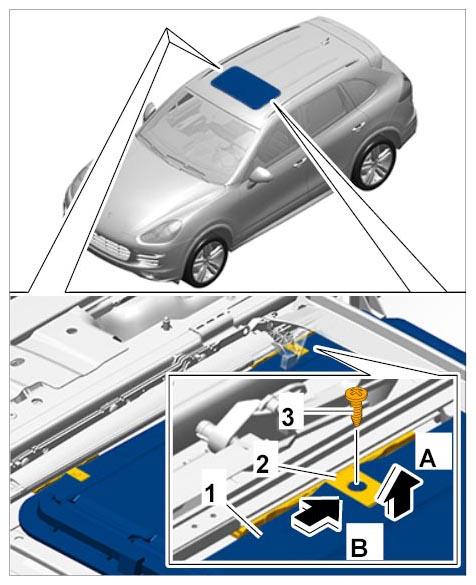

Secure fabric lining at the rear.
1. 4.1. Lift up guide elements -2- (-A- ) and push them into the cut-outs in the fabric lining -1- (-B- ).
  Information
  - Never make alterations to the micro-self-locking screws, which have a negative effect on the bonding (e.g. using lubricant, loosening bolts and screwing them down again).
  - Replace micro-self-locking screws.
2. 4.2. Screw in rear fastening screws -3- .

  Fig 4: Securing Fabric Lining At Rear
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
