Removing Seal For Sliding Roof

  1. Pull the seal -1-  out of the glass panel at any position.
  2. Pull off the seal all the way around the glass panel.

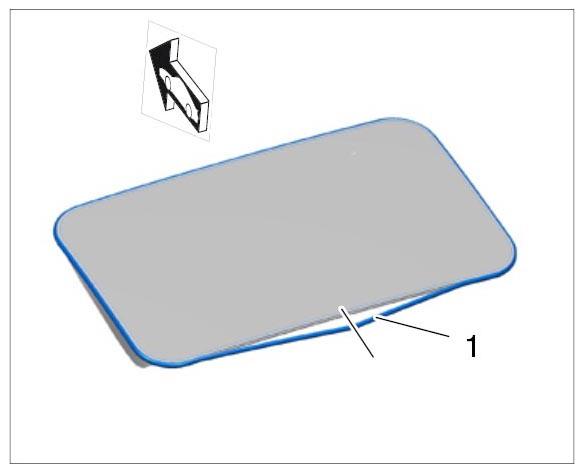

    Fig 1: Removing Seal
    G09939901Courtesy of PORSCHE CARS NORTH AMERICA, INC.
