Technical Values
| Location | Description | Type | Basic Value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

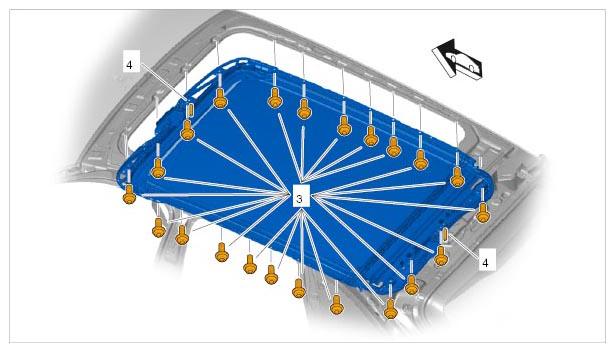

| Fastening Screws For Roof Assembly | Observe Specified Tightening Sequence | Tightening Torque | 8 Nm (6 ft. lb.) | ||
|
Positioning Roof Assembly |
|||||

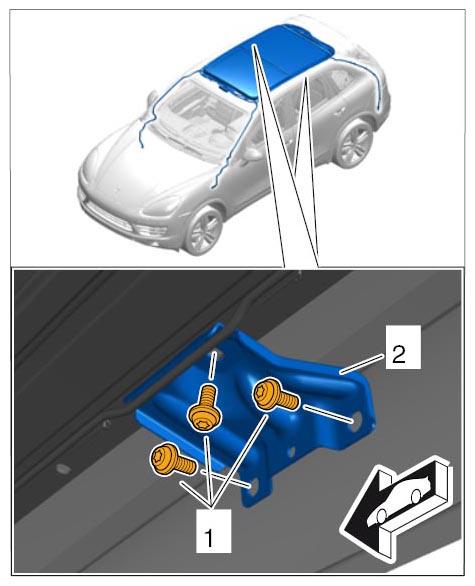

| Fastening Screws For Console | Item 1 | Tightening Torque | 8 Nm (6 ft. lb.) | ||
|
Removing Console |
|||||
| Roof Assembly To Body | Item 4 | Diameter | 8 mm (6 ft. lb.) | ||
|
Positioning Roof Assembly |
|||||
