Removing Vibration Damper (Crankshaft Pulley)

Information

The pictures shown in this document may differ from the original.

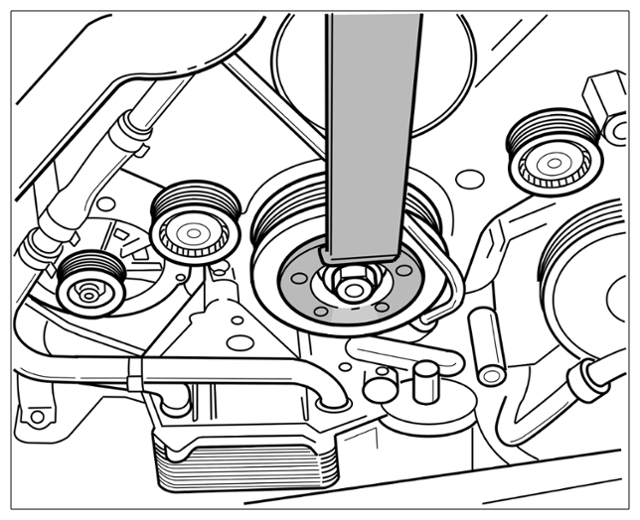

1. > 9679/1 - Arm bracket  must be inserted into the vibration damper and turned until it locks. > Arm bracket in vibration damper

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Arm bracket in vibration damper

   NOTIFICATION

   Incorrect handling of tools

   • Risk of damage to the body
     • Only use tools approved by Porsche.
     • Always ensure that the tool is seated correctly.
     • Protect the body and interior of the vehicle from damage with protective covers.
     • Cover delicate components with cardboard or sheetmetal panels.

   Information

   Protect the radiator fins using cardboard or a sheetmetal panel to prevent damage.

   Cover wing and peripheral parts to protect them.

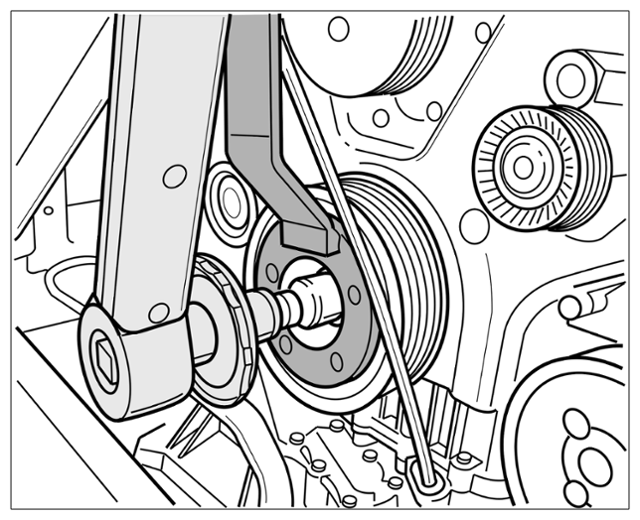

2. Fit large torque wrench > Large torque wrench on the central screw or  T-piece -2-  (large socket, width across flats 27) and loosen central screw for balancer. Do not use the screw again. Use a tubular handle -I-  , if necessary. Loosening torque is very high.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Large torque wrench on the central screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

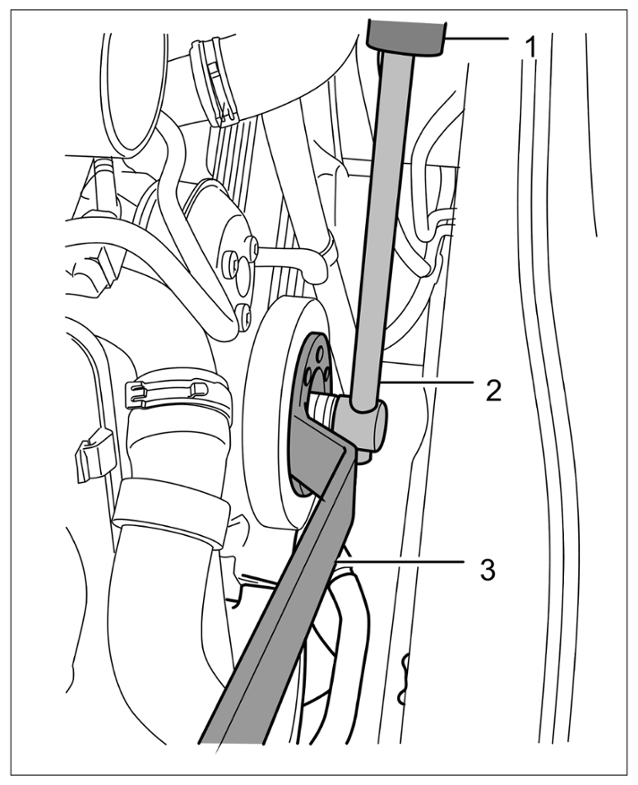

   Use of tool for vibration damper

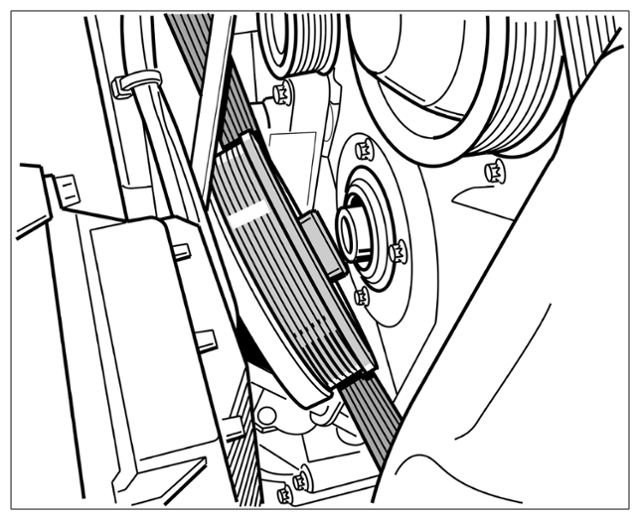

3. Remove central screw and pull vibration damper down and forward. > Vibration damper

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Vibration damper
