Removing Crankshaft Sealing Ring For Pulley/Vibration Balancer

  1. Loosen the four fastening screws -Arrows-  and remove joint flange with sealing ring.
    1. Replace joint flange and sealing ring.

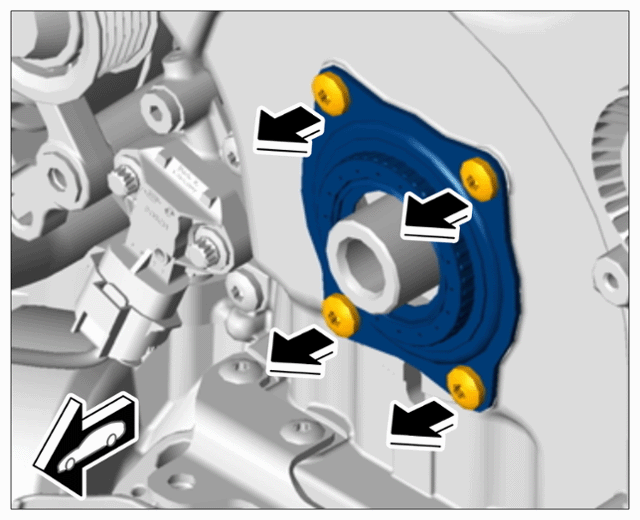

      G14736202Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing joint flange with sealing ring

  2. Clean contact surfaces.
