Removing Cooling Fan Housing (Radiator Frame)

WARNING: Electrically moved components
  • Danger of limbs being trapped or severed
    • Switch off electric power to drive motor.
    • Make sure it does not switch on again.
    • Check that there is no electric charge.
  1. Unclip electric lines from the brackets.

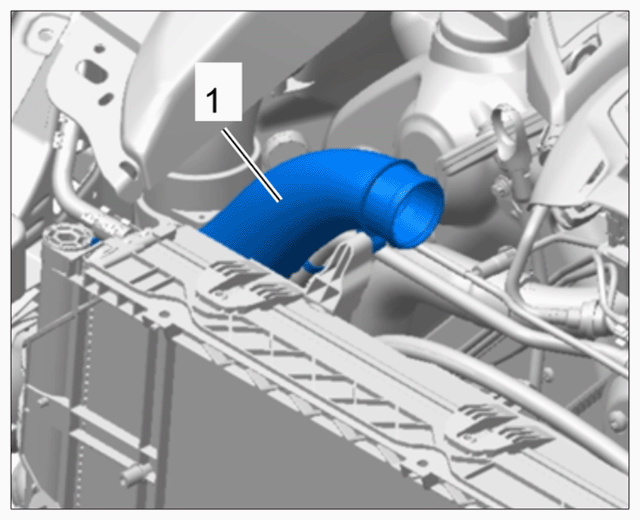

  2. Remove pressure pipe at the right -1-  .
    G14736948Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing pressure pipe

    1. Release vent hose -2-  from the pressure pipe at the right -1-  and disconnect it.

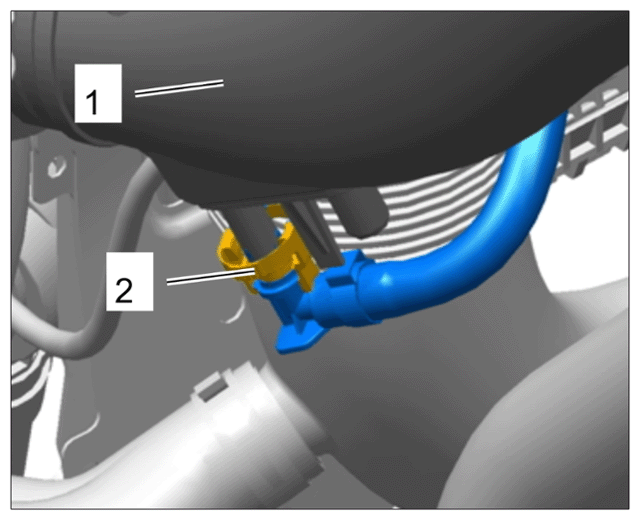

      G14736949Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting vent hose

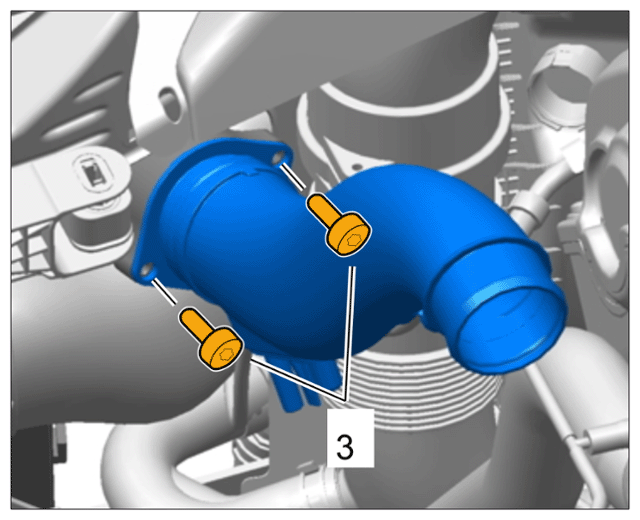

    2. Unscrew two fastening screws -3-  on the pressure pipe at the right for the charge-air cooler.
      G14736950Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fastening screws on charge-air cooler

    3. Unclip circlip -4-  from the holder for the pressure pipe at the right -5-  using a suitable tool.
      G14736951Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Unclipping circlip from holder

    4. Pull pressure pipe at the right out of the bracket -5-  .
    5. Pull pressure pipe at the right out of the charge-air cooler and remove it in an upward direction.

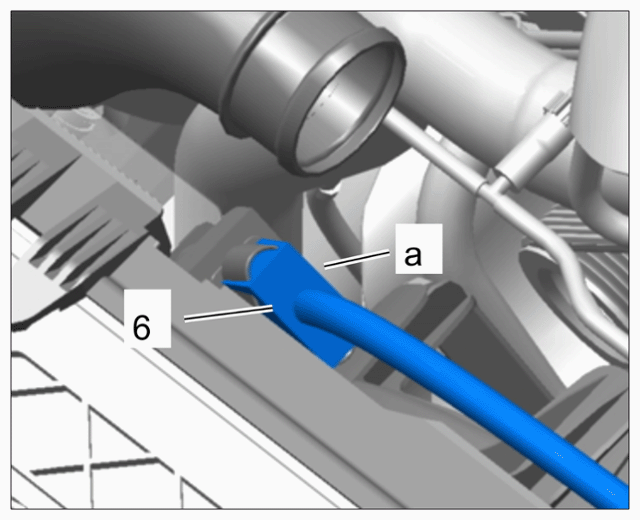

  3. Release and disconnect electric plug connection -6-  for fan on the cooling fan housing -a-  .
    G14736952Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off connector on cooling fan housing

  4. Remove holder for pressure pipe at the left.
    1. Unclip circlip -4-  from the holder -5-  using a suitable tool.

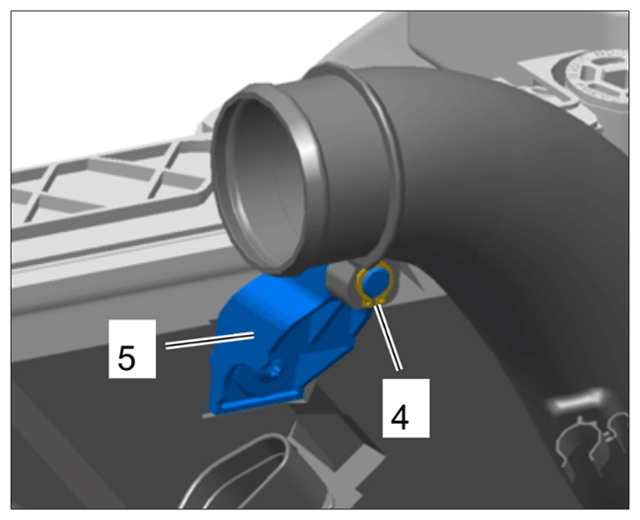

      G14736953Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Unclipping circlip from holder

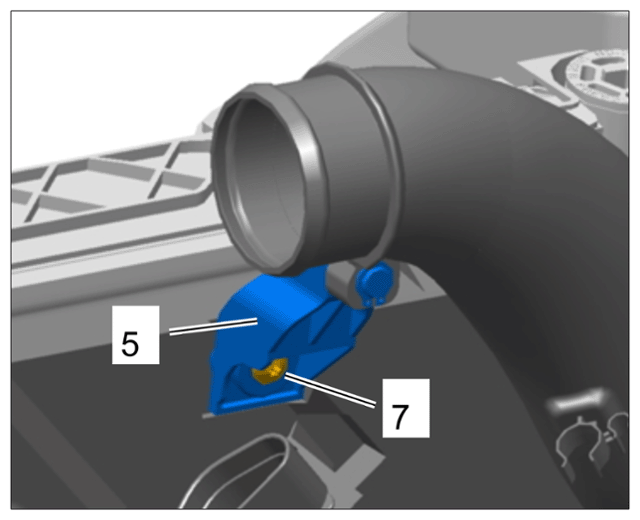

    2. Unscrew fastening screw -7-  on the holder -5-  at the cooling fan housing.
      G14736954Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Unscrewing fastening screw for holder

    3. Remove holder -5-  .

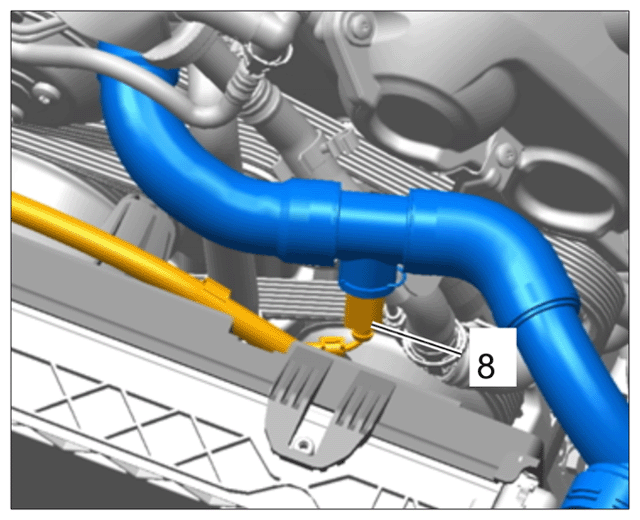

  5. Release and disconnect electric plug connection -8-  at the cooling water hose.
    G14736955Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off connector on cooling water hose

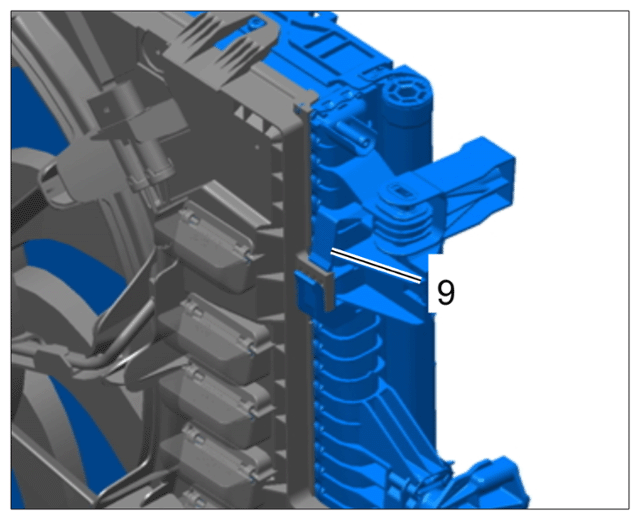

  6. Release locking springs -9-  at the left and right of the cooling fan housing.
    G14736956Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing locking springs

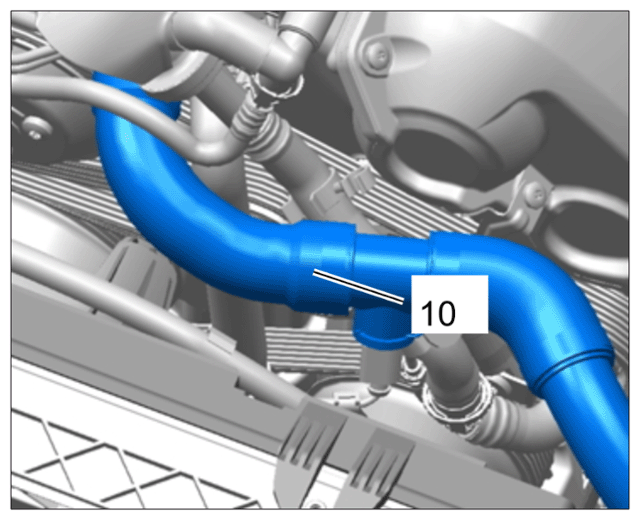

  7. Carefully press cooling water hose -10-  to one side.
    G14736957Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressing cooling water hose aside

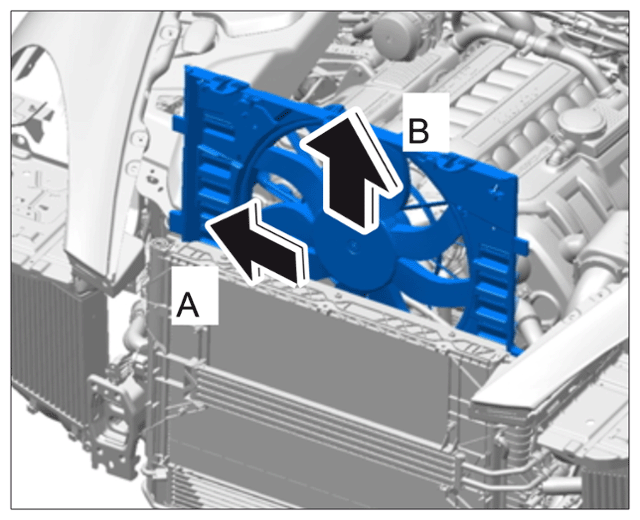

  8. Pull cooling fan housing out of the brackets at the side and at the bottom and swivel it to the right slightly -arrow A-  .
    G14736958Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling out cooling fan housing

  9. Carefully remove the cooling fan housing by pulling it up -arrow B-  .
