Installing Side Panel Bottom Section: Notes

  1. Apply adhesive.

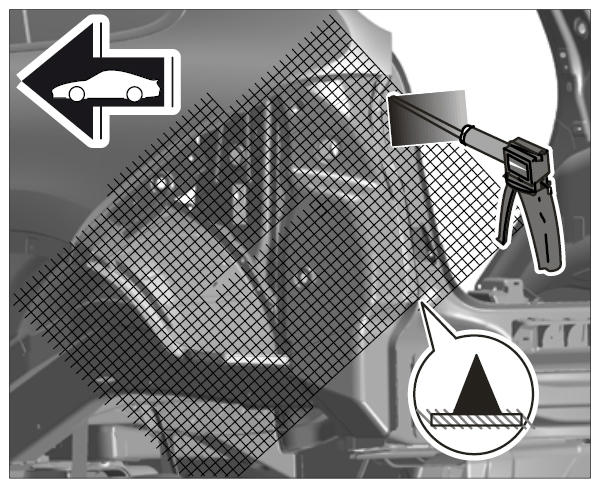

    Fig 1: Applying Adhesive To Side Panel Bottom Section
    G09939153Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Evenly apply adhesive to the marked areas.

      Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

  2. Fit and secure the side panel bottom section.
  3. Resistance spot-weld the side panel bottom section.

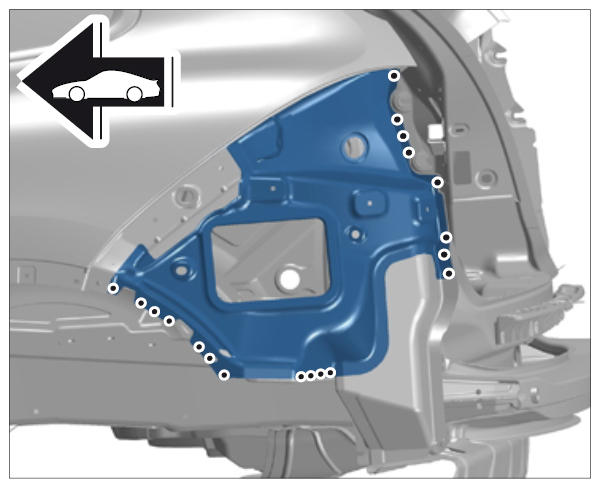

    Fig 2: Identifying Resistance Spot-Weld Side Panel Bottom Section
    G09939154Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Weld in side panel bottom section.
    1. 4.1. Apply a welded seam to the side panel bottom section using inert gas.

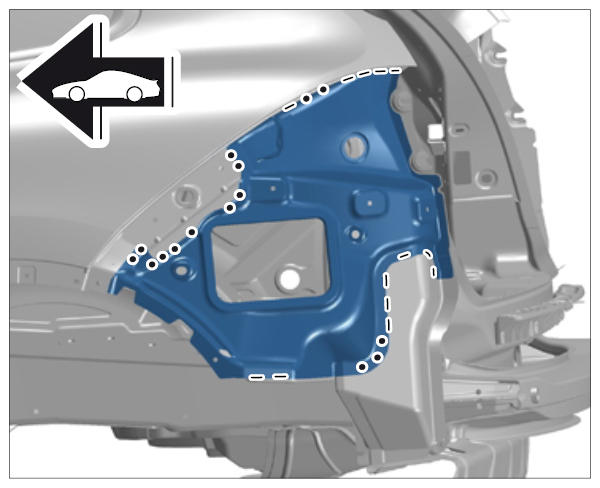

      Fig 3: Identifying Weld In Side Panel Bottom Section
      G09939155Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 4.2. Plug-weld the side panel bottom section using inert gas.
