Removing Control Unit For Electric Parking Brake

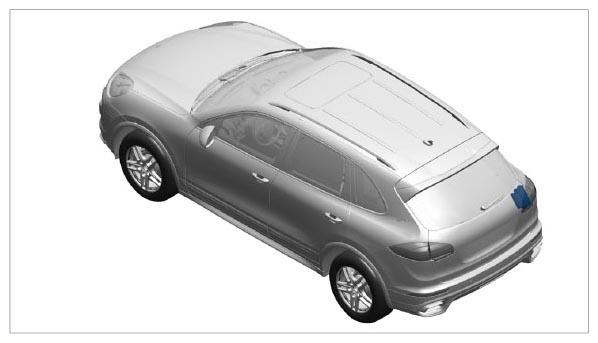

Fig 1: Identifying Installation Position Of Control Unit For Electric Parking Brake

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche  .
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed  .
• Never touch the electric pins and plug contacts  .

→ Remove the ignition key and switch off load before disconnecting or removing load.

1. Unscrew the two fastening screws -1-  .

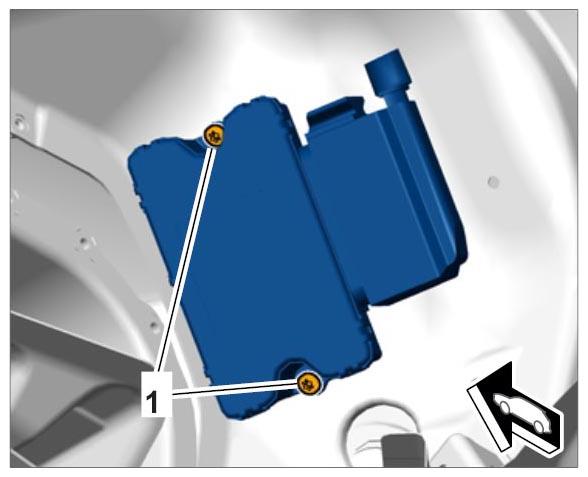

   Fig 2: Identifying Control Unit For Electric Parking Brake

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release plug connection -1-  and disconnect it -2-  .

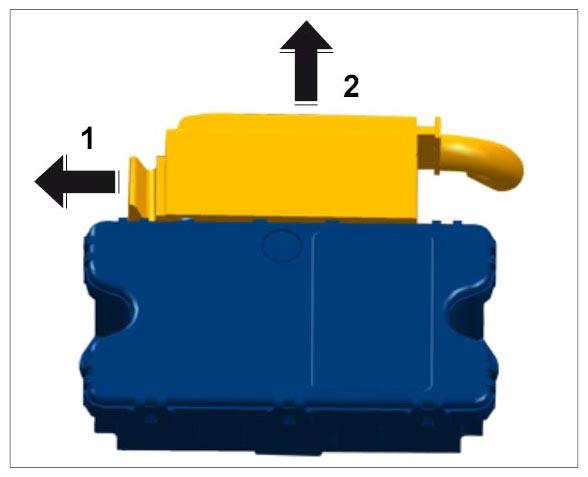

   Fig 3: Disconnecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
