Subsequent Work: Notes

  1. Fit the brake calliper.

    → 473919 REMOVING AND INSTALLING FRONT BRAKE CALLIPER

  2. Position disc brake pads by operating the brake several times.
  3. Check the brake fluid level and correct it if necessary.
  4. Fit the wheel. Use assembly aids (Assembly Pins) -1-  . → 44051900 REMOVING AND INSTALLING WHEEL

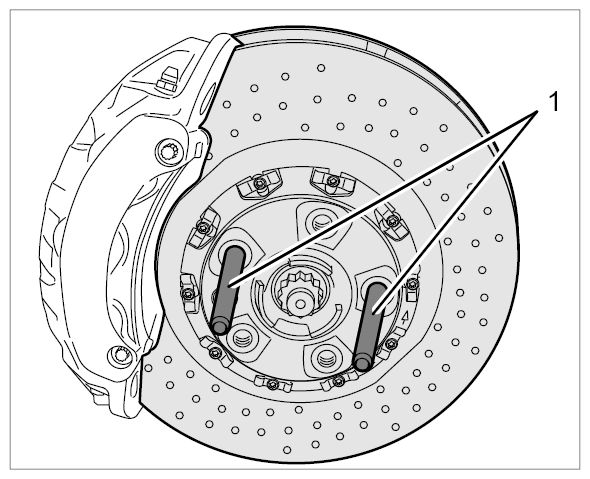

    Fig 1: Identifying Assembly Aids (Assembly Pins)
    G09937292Courtesy of PORSCHE CARS NORTH AMERICA, INC.
