Installing Disc Brake Pads

Information

• Never use an impact bolter to loosen and tighten the brake calliper on the wheel carrier  .
• Visually inspect the thread for the brake calliper and blow it out carefully if necessary using compressed air. Use goggles!
• Replace screws  .
• Observe correct Tightening Torques  → 4X00IN TIGHTENING TORQUES FOR THE BRAKE HYDRAULIC SYSTEM .

→ Fit new pad retaining springs

→ Fit new fastening screws

→ Only use the type-specific brake pads listed .

→ Replace the brake pads when the brake pad wear indicator light comes on, but no later than when there is a residual pad thickness of 2 mm on each axle.

→ Replace the brake discs on each axle as soon as the brake pad wear limit is reached.

Installation is performed in reverse order.

1. Fit new pad retaining springs. → 465002 CHECKING FRONT BRAKE DISCS (WEAR ASSESSMENT)

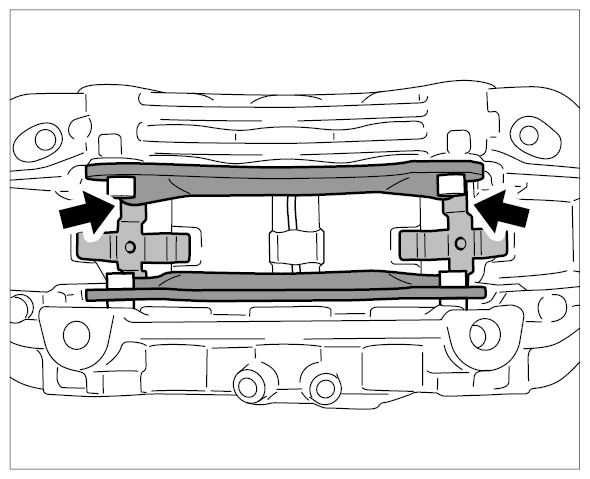

2. Place the brake pad onto the sealing surfaces of the pad retaining springs -arrows-  .
   Fig 1: Fitting Brake Pad

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

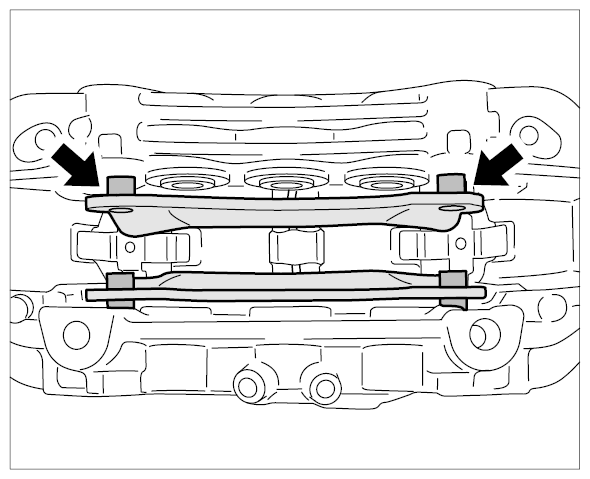

3. Press the brake pad into the brake calliper with slight pressure and slide it onto the pad retaining pins -arrows-  .
   Fig 2: Locating Brake Pad

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

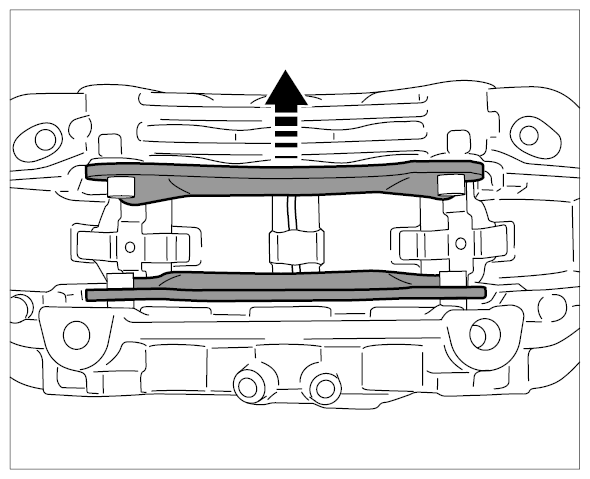

4. Fit the disc brake pad. -direction arrow-
   Fig 3: Fitting Brake Pad

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
