Removing Front Seat-Belt Buckle

→ Always replace fastening screws for belt lock after customer service and reworking.

→ It is not permissible to make alterations to the microencapsulated screws (e.g. use lubricant, loosen bolts, and screw them down again).

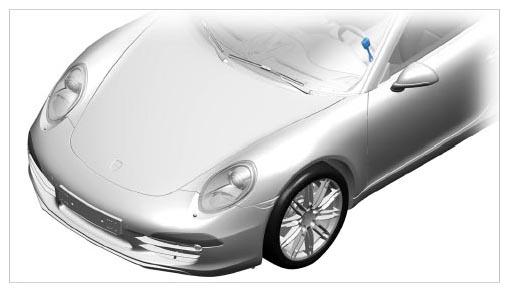

Fig 1: Identifying Front Seat-Belt Buckle Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

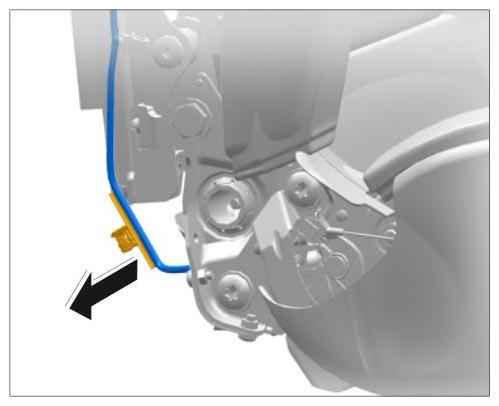

1. Unclip wire harness.
   1. 1.1. Unclip wire harness -arrow-  .
      Fig 2: Unclipping Wire Harness

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

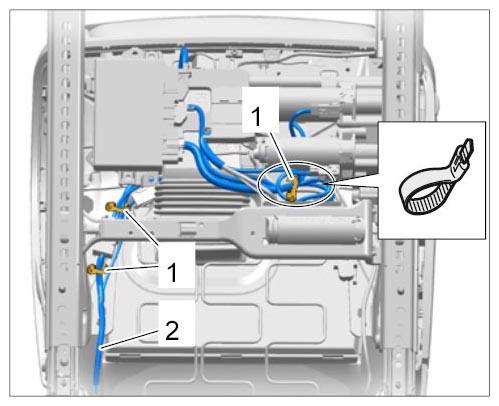

2. Release wire harness.
   1. 2.1. Remove tie-wrap -1-  .
   2. 2.2. Remove wire harness -2-  from the line brackets.
      Fig 3: Removing Wire Harness

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   The number of plug connections can vary, depending on equipment.

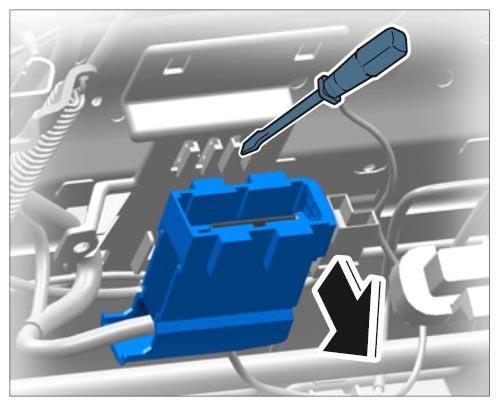

3. Pull off connector.
   1. 3.1. Release locking lugs.
   2. 3.2. Pull off connector -arrow-  .
      Fig 4: Pulling Off Connector

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

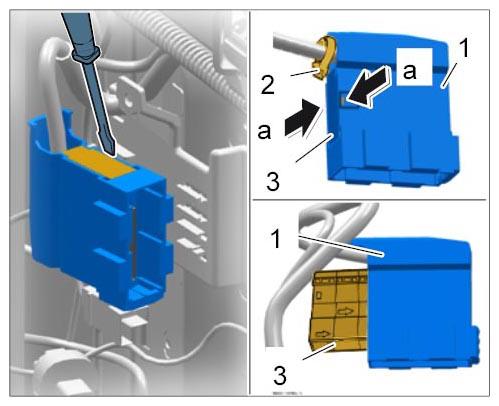

4. Disassemble connector.
   1. 4.1. Remove tie-wrap -2-  on the plug connection -1-  .
   2. 4.2. Release locking lugs -arrows a-  on the connector -1-  .
   3. 4.3. Remove connector -3-  .
      Fig 5: Disassembling Connector

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

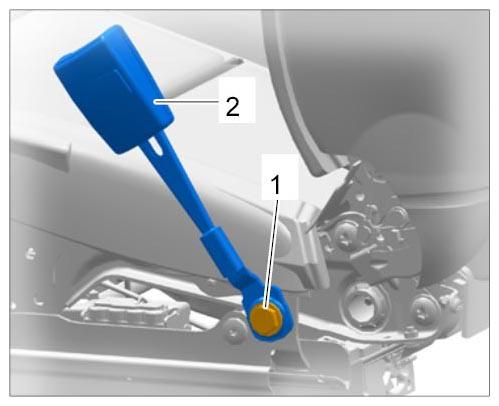

5. Remove seat-belt buckle.
   1. 5.1. Unscrew fastening screw -1-  .
   2. 5.2. Pull out wire harness and remove front seat-belt buckle -2-  .
      Fig 6: Removing Front Seat-Belt Buckle

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
