Removing Front Belt Lock

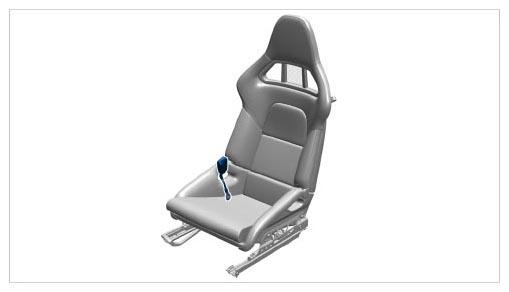

Fig 1: Identifying Front Belt Lock Position (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Do not kink front belt lock.

→ Observe sequence for removing and installing front belt lock.

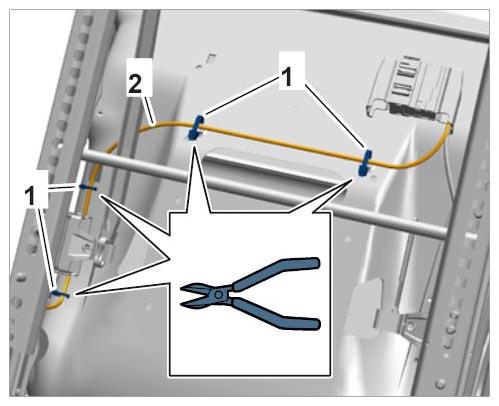

1. Remove tie-wraps -1-  on wire harness for front belt lock -2-  .
   Fig 2: Disconnecting Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

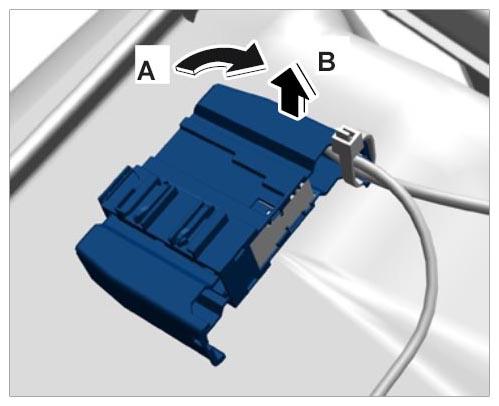

2. Turn connector socket 90° to the left -arrow A-  and remove it from the seat shell -arrow B-  .
   Fig 3: Removing Connector Socket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Disconnect wire harness from the connector socket.

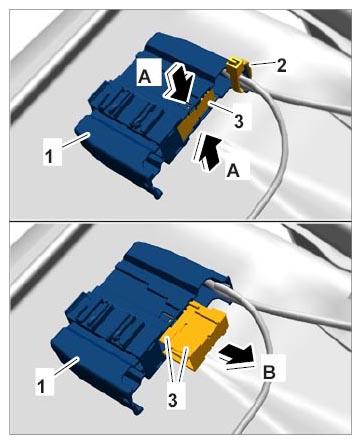

   1. 3.1. Remove tie-wrap -2-  on the connector socket -1-  .
   2. 3.2. Release single connectors -3-  (-arrows A-  ) and remove them from the connector socket -1-  (-arrow B-  ).
   Fig 4: Disconnecting Connector Socket
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove front belt lock.

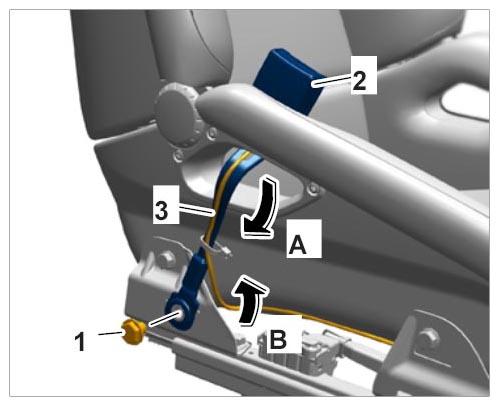

   1. 4.1. Unscrew and remove fastening screw -1-  .
   2. 4.2. Pull front belt lock -2-  out through the opening on the bucket seat -arrow A-  .
   3. 4.3. Pull wire harness -3-  out through the seat frame -arrow B-  .
   Fig 5: Removing Front Belt Lock

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
