Removing Cover

  1. Remove cover -1-  .
    1. 1.1. Pull up on the handle liners -2-  of the cover and unclip -arrow-  .
    2. 1.2. Pull forward at the front underneath the luggage compartment -3-  seal.
    3. 1.3. Pull the cover forward -1-  underneath the cowl panel covering -4-  .

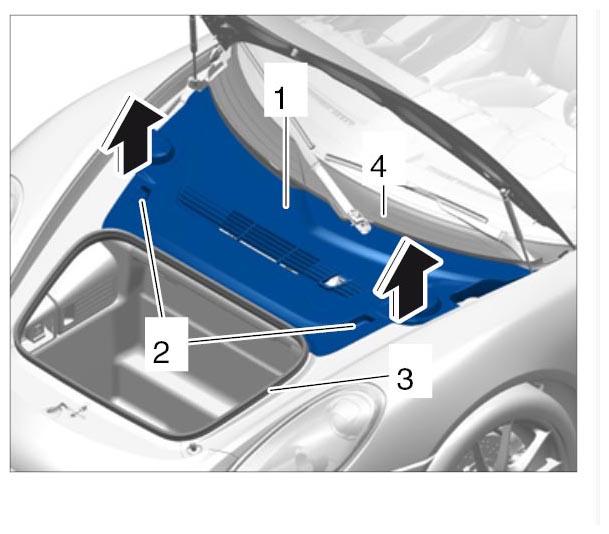

Fig 1: Removing Cover
G10028015Courtesy of PORSCHE CARS NORTH AMERICA, INC.
