Removing and installing rear wheel bearing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

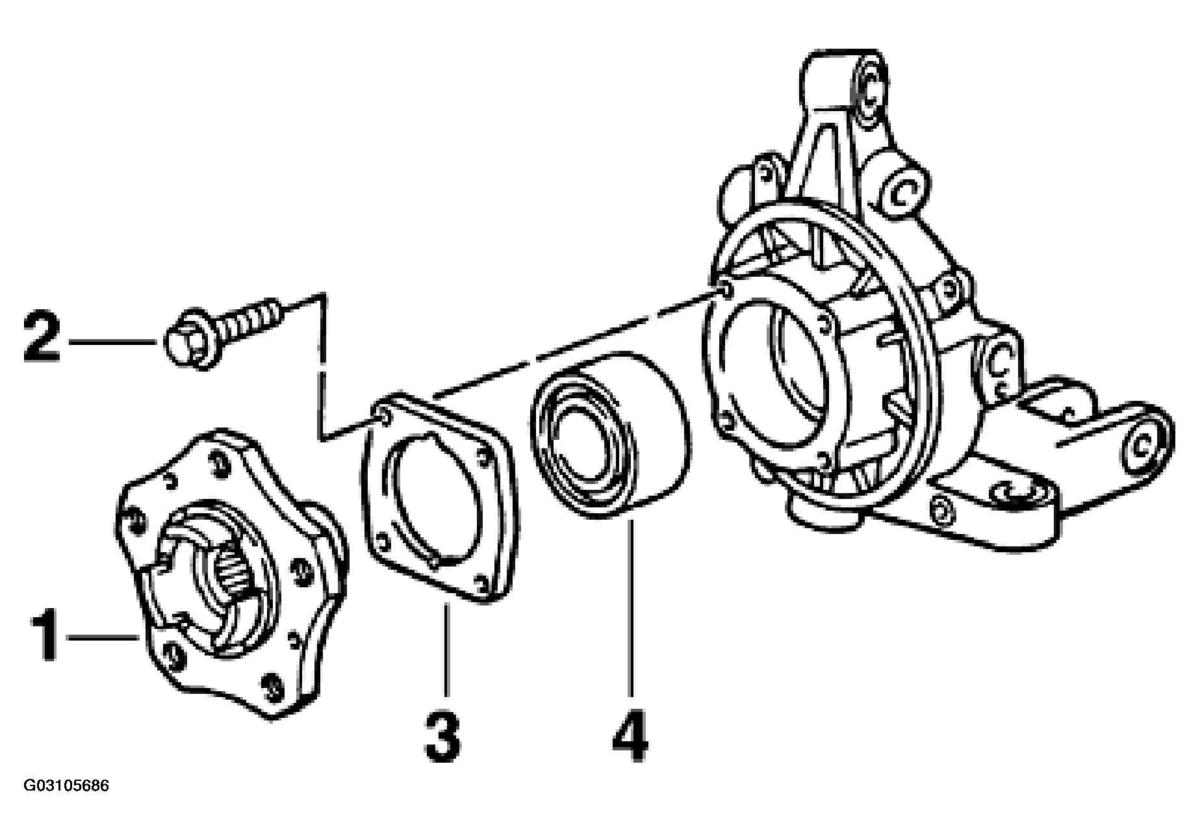

WHEEL BEARING COMPONENTS REMOVAL AND INSTALLATION PROCEDURE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Wheel hub | 1 | Press out with pressure piece P 297 A under a hydraulic press. For this purpose, use the separator and corresponding shims for support | Press in under a hydraulic press. To do this, place the wheel hub on the wheel centering device and press it on the wheel bearing inner race using pressure piece VW 415 A |
| 2 | Hexagon-head bolt (10.9) | 4 | Tighten to 37 N.m (27 ftlb.) | |
| 3 | Lid | 1 | Fit in correct position (groove down) | |
| 4 | Wheel bearing | 1 | Heat wheel bearing housing to approx. 100° C (max. 120° C). Press out wheel bearing with tubular piece VW 415 A (tool C) |
Heat wheel bearing housing to approx. 100°C (max. 120° C). Insert new wheel bearing in correct position (inscription facing the wheel hub), and then press again slightly using pressure piece 9247/3 (tool D) and tubular piece VW 415 A (tool C) |
