Removing Hydraulic Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

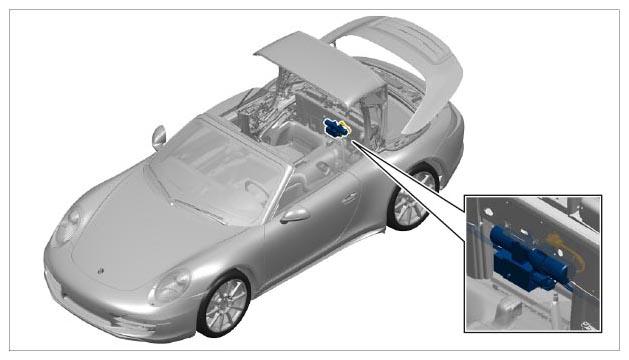

Fig 1: Identifying Hydraulic Pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

CAUTION: Incorrect handling of hydraulic system

Risk of damage to hydraulic system
Malfunction in hydraulic system

→ Do not bend, trap or crush hydraulic lines.

→ Protect hydraulic system from contamination.

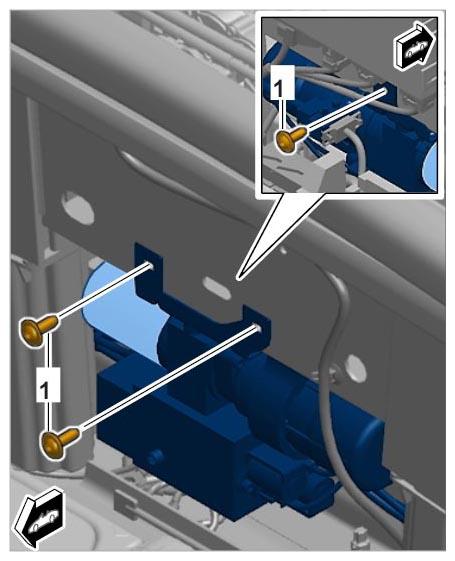

Unscrew fastening screws -1- .

Fig 2: Removing Hydraulic Pump Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

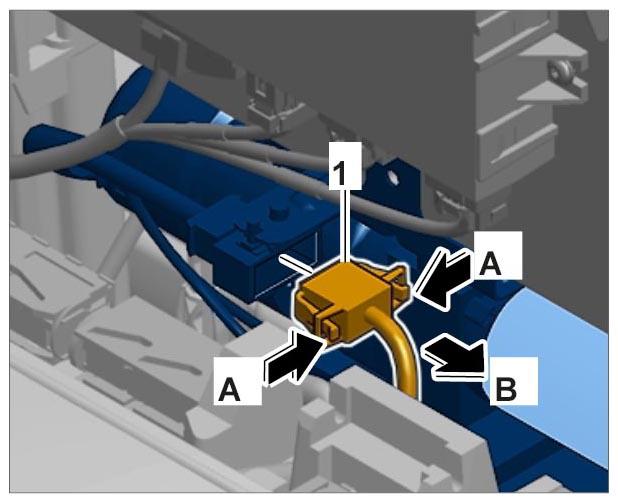

Disconnect plug connection -1- .

Fig 3: Disconnecting Wiring Harness Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Release connector. -arrows A-
2. 2.2. Pull off connector. -arrow B-
  Information

  Before unscrewing the banjo bolts, lay a cloth underneath to soak up emerging hydraulic oil.

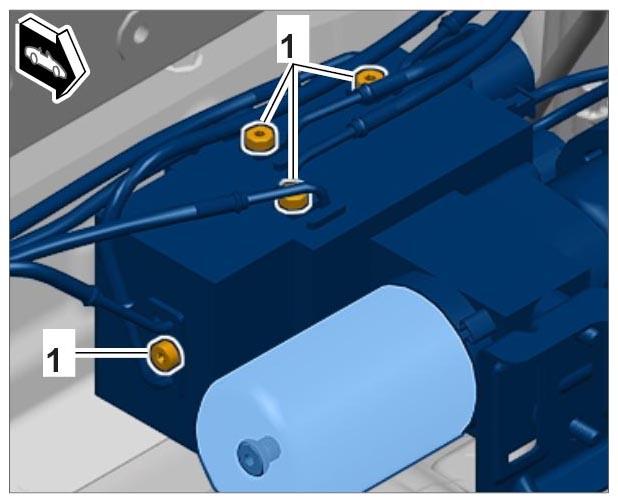

Unscrew fastening screws -1- on the line connections.

Fig 4: Removing Line Connections Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove line connections.
Remove hydraulic pump.
