Removing Side Convertible Top Rooflining

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Side Convertible Top Rooflining

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen rear fastening points.

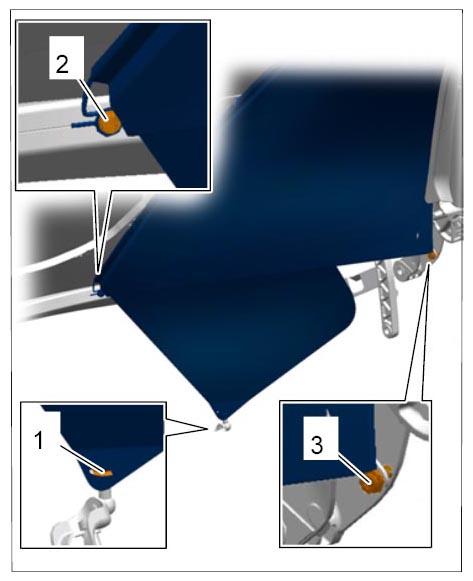

Fig 2: Identifying Rear Convertible Top Rooflining Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Remove tie-wrap -1- on the tension rope.
2. 1.2. Unscrew screw -2- .
3. 1.3. Remove expansion rivet -3- .
Disengage rear guide cable.
1. 2.1. Disengage rear guide cable at the bottom -arrow- .

  Fig 3: Removing Rear Guide Cable (Bottom)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Disengage rear guide cable at the top -arrow- .

  Fig 4: Removing Rear Guide Cable (Top)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

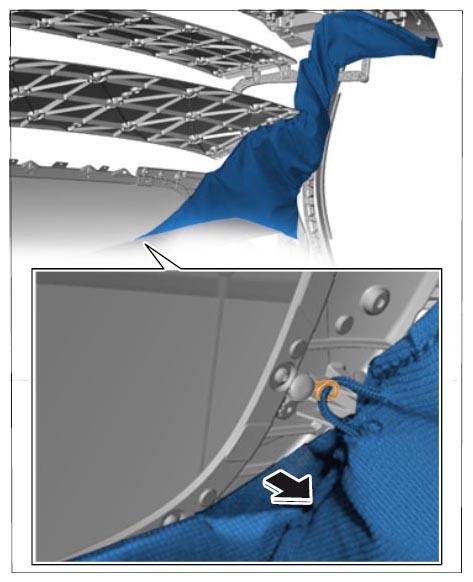

Disengage guide cable at the rear surface roof strut -arrows- .

Fig 5: Removing Guide Cable Of Rear Surface Roof Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

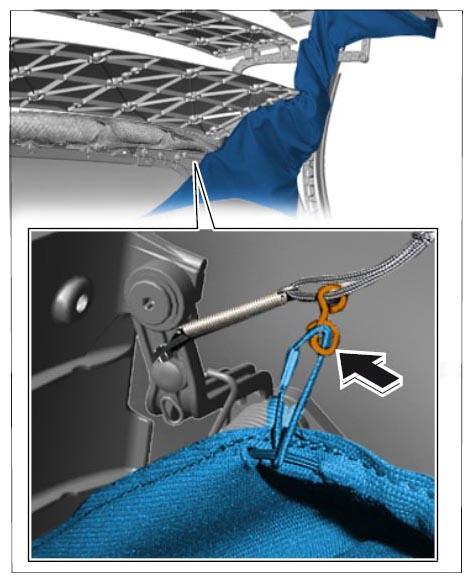

Disengage guide cable at the front surface roof strut -arrow- .

Fig 6: Removing Guide Cable Of Front Surface Roof Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage control cable at the roof frame.

Fig 7: Removing Control Cable On Roof Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Unhook boot -1- .
2. 5.2. Disengage control cable.

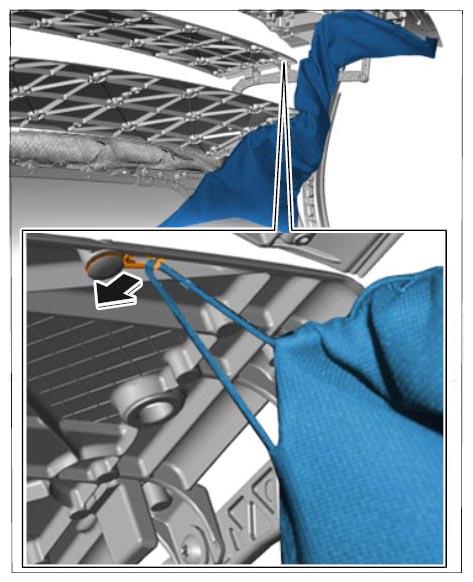

Disengage guide cable at the roof frame -arrows- .

Fig 8: Removing Guide Cable Of Roof Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach guide cable on upper control arm.

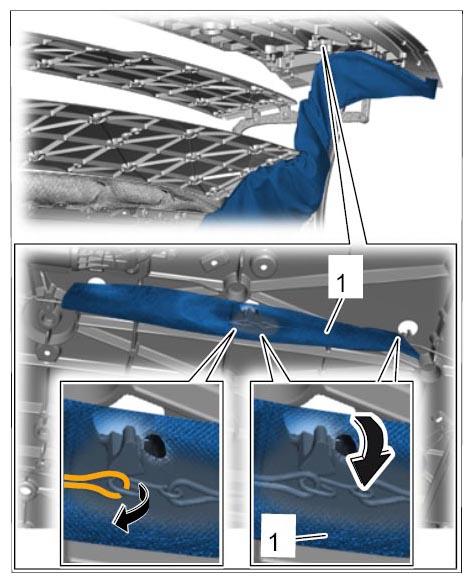

1. 7.1. Cut tie-wrap -1- and guide the guide cable inwards -arrow- .

  Fig 9: Identifying Guide Cable On Upper Control Arm
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

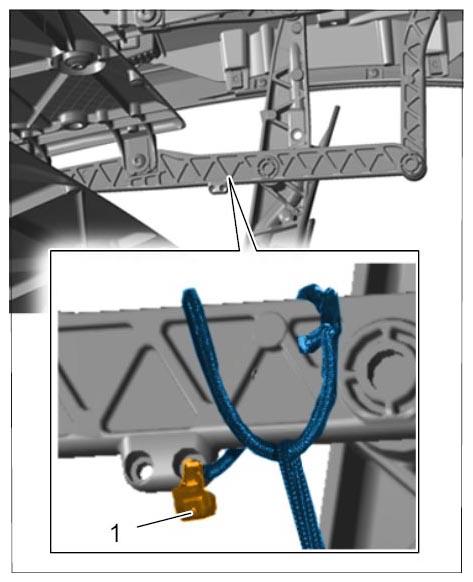

Detach cloth -arrow- .

Fig 10: Detaching Cloth
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach front convertible top rooflining.

Fig 11: Identifying Front Convertible Top Rooflining
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 12: Removing Front Convertible Top Rooflining
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

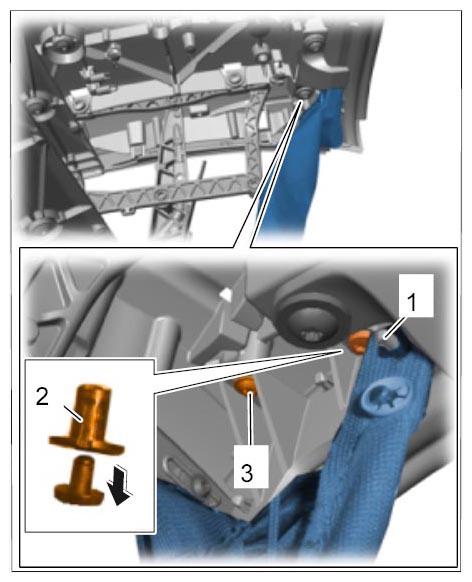

1. 9.1. Loosen expansion rivets -2- .
2. 9.2. Unscrew screws -3- .
3. 9.3. Fold down convertible top rooflining -1- .
4. 9.4. Unscrew screw -4- .

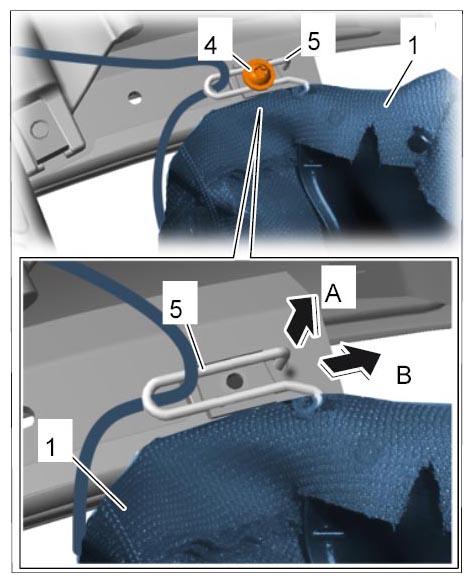

5. 9.5. Remove clamp -5- with convertible top rooflining -1- (-arrow A- ).
6. 9.6. Pull clamp -5- out of the convertible top rooflining -1- (-arrow B- ).

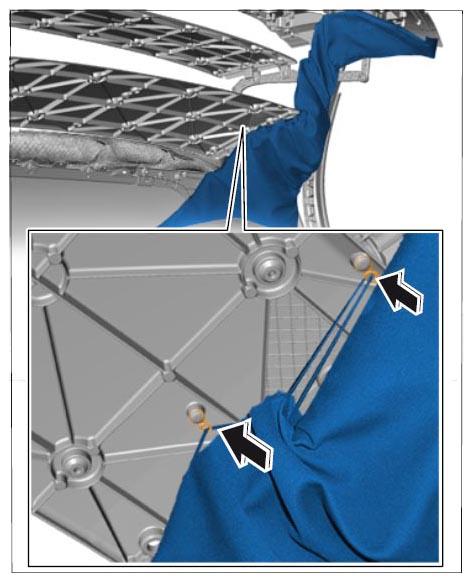

Drill out rivets.

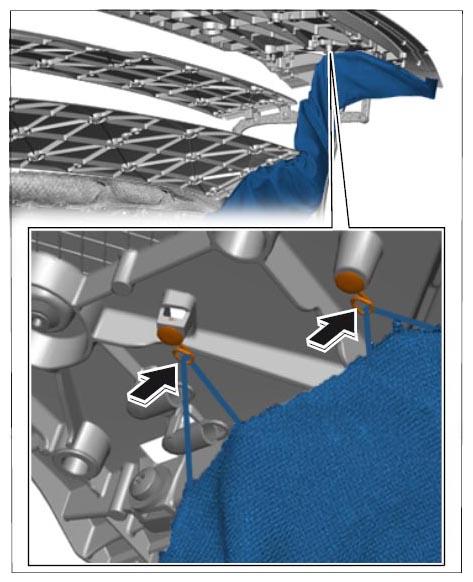

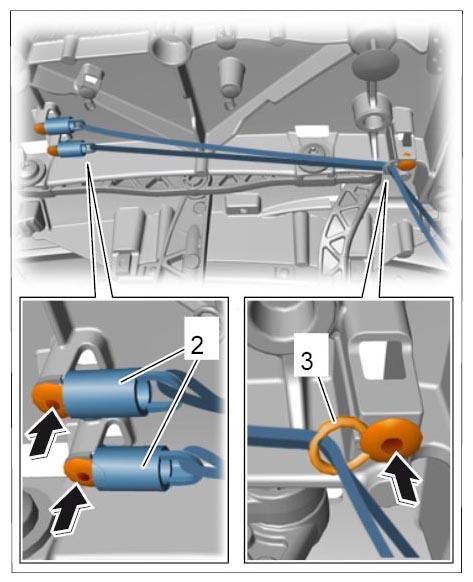

1. 10.1. Drill out rivets -arrows- on tensioning springs -2- and guide eyelet -3- .

  Fig 13: Drilling Out Rivets On Tensioning Springs And Eyelet
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

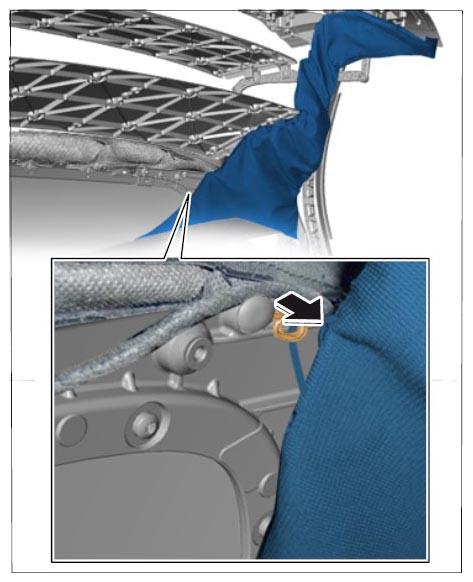

2. 10.2. Drill out rivet -arrow- on guide eyelet -4- .

  Fig 14: Drilling Out Rivet On Guide Eyelet
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 10.3. Drill out rivet on retaining strap.

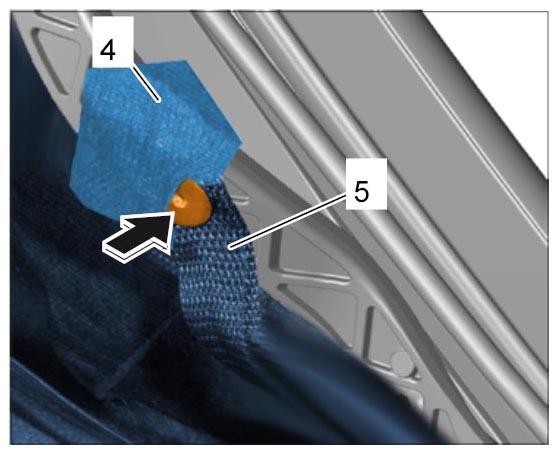

  Fig 15: Locating Retaining Strap
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

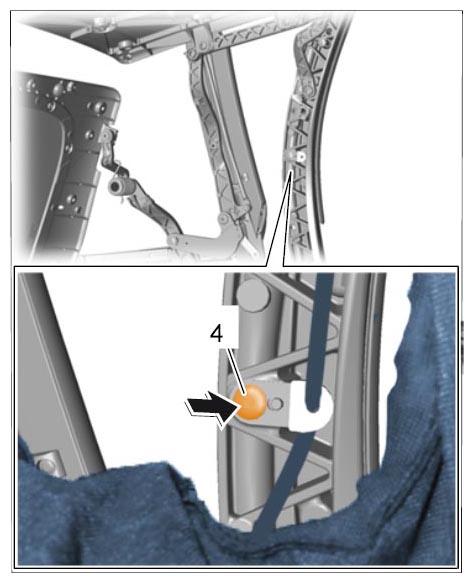

  1. 10.3.1. Unwrap fabric tape -4- on control arm.
  2. 10.3.2. Drill out rivet -arrow- on retaining strap -5- .
  3. 10.3.3. Guide retaining strap inwards.

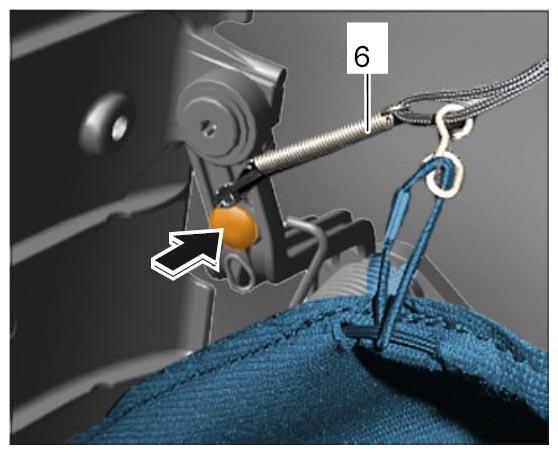

4. 10.4. Drill out rivet -arrow- on guide cable spring -6- .

  Fig 16: Locating Rivet On Guide Cable Spring
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove guide cable.

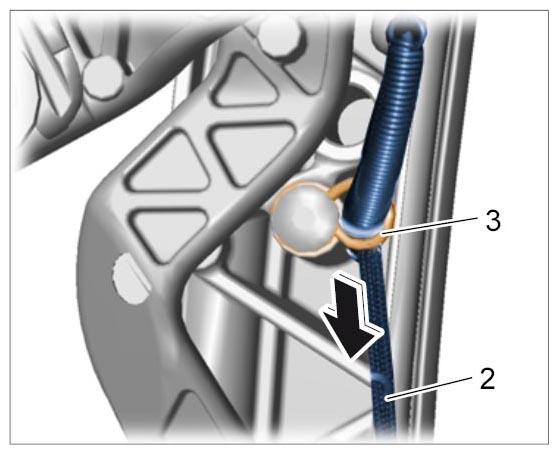

1. 11.1. Pull guide cable with spring -2- through at the suspended joint -3- .

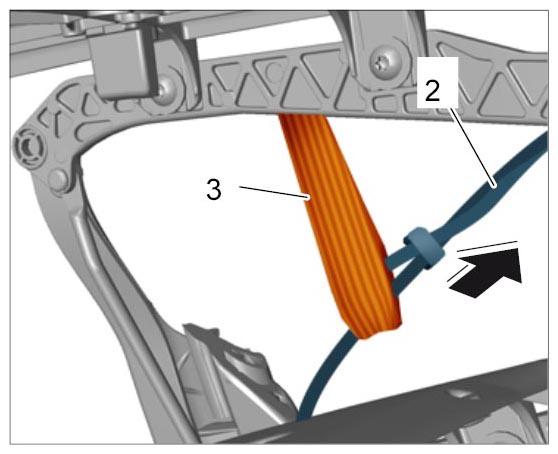

  Fig 17: Pulling Guide Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 11.2. Pull guide cable with spring -2- through at the guide eyelet -3- .

  Fig 18: Pulling Guide Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

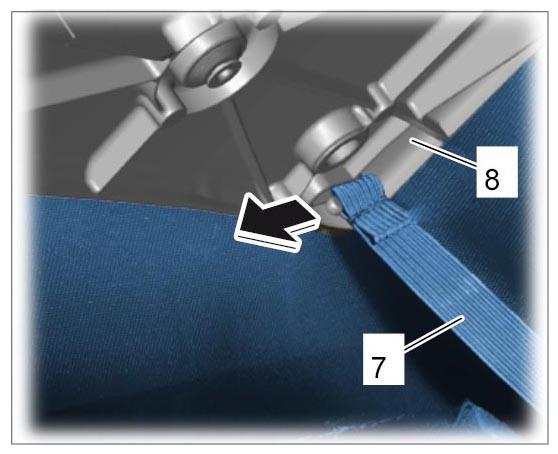

Disengage retaining strap -7- at the rear surface roof strut -8- .

Fig 19: Removing Retaining Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove side convertible top rooflining.
Remove chips and remaining parts of rivets.
