Technical Values - Group 27 - Starter, Power Supply, Cruise Control: Battery
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Battery filler plug | Tightening torque | 1.2 Nm (0.9 ftlb.) | |||
|

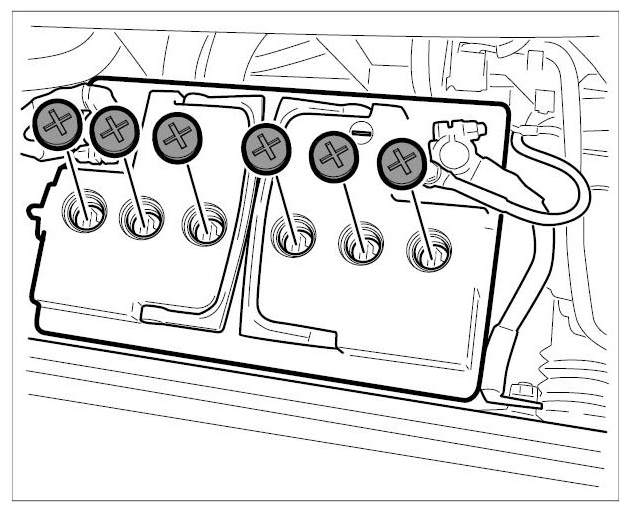

Unscrewing battery plugs |
|||||
| Retaining bar on cowl panel frame or battery console | Collar nut, M8 | Tightening torque | 23 Nm (17 ftlb.) | ||
| Terminal clamp to battery terminal | M6 nut | Tightening torque | 6 Nm (4.5 ftlb.) | ||
| Battery ground line to cowl panel frame | Collar nut, M8 | Tightening torque | 15 Nm (11 ftlb.) | ||
| Rail to battery console | Hexagon-head bolt, M8 | Tightening torque | 23 Nm (17 ftlb.) | ||
| Battery console to holder | Hexagon-head bolt, M8 | Tightening torque | 23 Nm (17 ftlb.) | ||
| Battery console holder to body | Hexagon-head bolt, M8 | Tightening torque | 23 Nm (17 ftlb.) | ||
