Battery Trickle Charging

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

When working or carrying out tests on the vehicle or when the vehicle is in the workshop, a battery charger with a rated current of at least 40 A must be connected.
As soon as the vehicle is unlocked, e.g. the vehicle is in the workshop or salesroom, it must be trickle charged with a battery charging device.

Switch off battery charger.
Switch off ignition and remove remote control (hand-held transmitter).
Switch off all loads (e.g. lights).
Connect the positive cable to the positive terminal for jump-lead starting -+- first, then to the positive terminal of the donor battery.
Connect the negative cable to the negative terminal of the donor battery first, then to the ground point for jump-lead starting - .

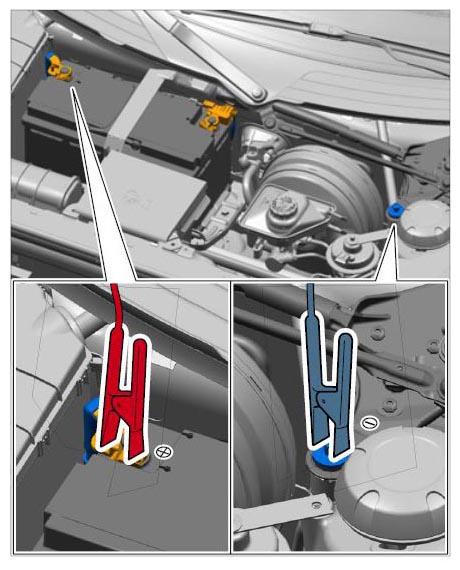

Fig 1: Identifying Battery External Power Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Set the charge current on the battery charger according to the battery capacity.
Switch on battery charger.
