Removing Bottom Retaining Strip

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drill out rivets -2-  and pull off bottom retaining strip -1-  (-arrow-  ).

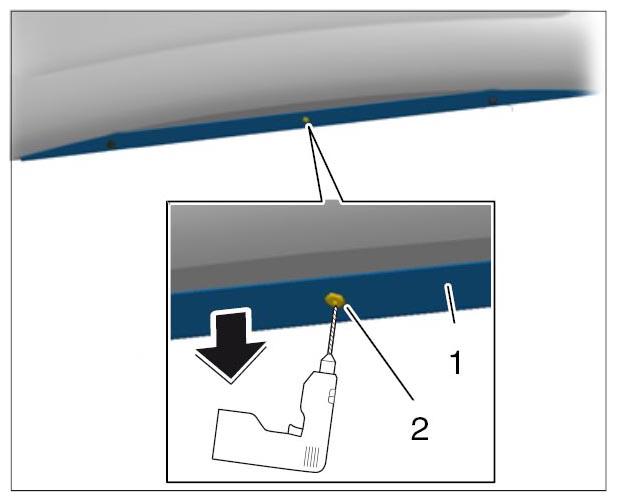

    Fig 1: Removing Bottom Retaining Strip
    G09994737Courtesy of PORSCHE CARS NORTH AMERICA, INC.
