Removing Rear Bumper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

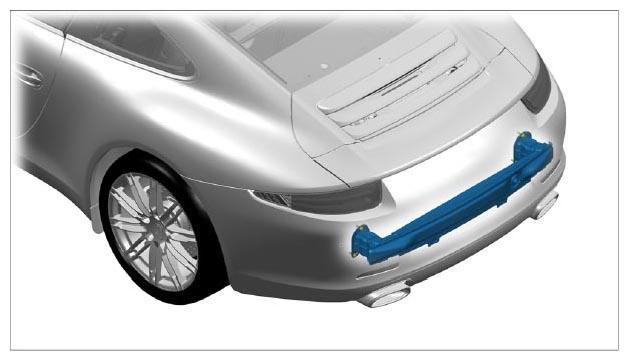

Fig 1: Overview Of Rear Bumper
G09994713Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Loosen heat protection at the sides.
    1. 1.1. Unscrew fastening screws -1-  at the left and right of the heat protection.

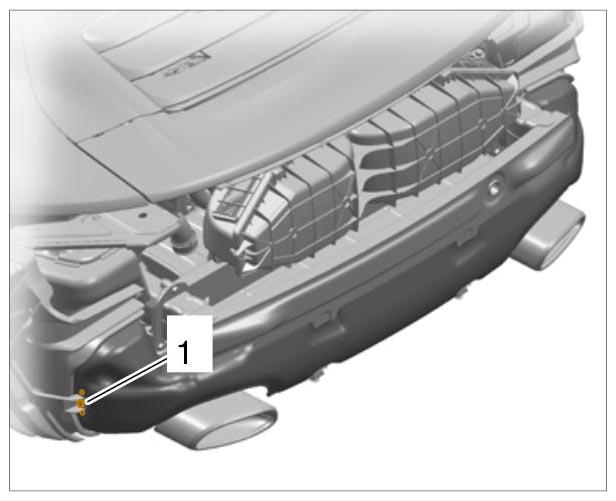

      Fig 2: Identifying Heat Protection Screws
      G09994714Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove bumper.
    1. 2.1. Unscrew fastening screws -1-  on the bumper -2-  and remove it complete with heat protection.

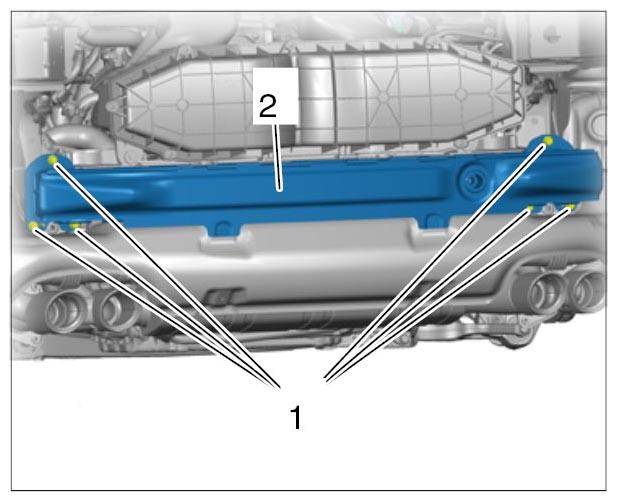

      Fig 3: Identifying Bumper Screws
      G09994715Courtesy of PORSCHE CARS NORTH AMERICA, INC.
