Removing Side Retaining Strip

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screws -2-  on the retaining strip -1-  .
  2. Unclip retaining strip -arrow-  and remove it.

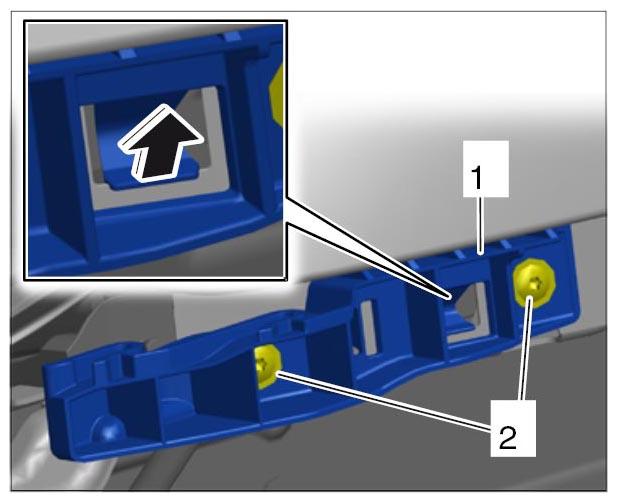

    Fig 1: Removing Retaining Strip
    G09994708Courtesy of PORSCHE CARS NORTH AMERICA, INC.
