Disconnecting Hose For Headlight Cleaning System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Information

  1. Pull hose -1-  out of the body in the left wheel housing area -arrow A-  .
  2. Release the hose -1-  by pressing in the locking mechanism -2-  (-arrow B-  ) and disconnect it -arrow C-  .

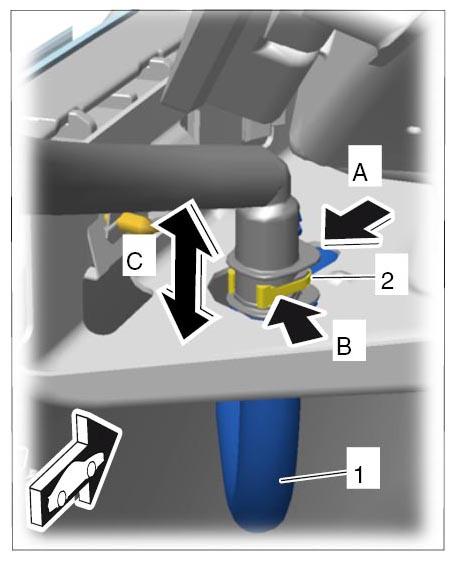

Fig 1: Disconnecting Headlight Cleaning Hose
G09994693Courtesy of PORSCHE CARS NORTH AMERICA, INC.
