Removing Cowl Panel Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Lift left cover flap -A- and unclip it by pulling it forward ↓-B- .

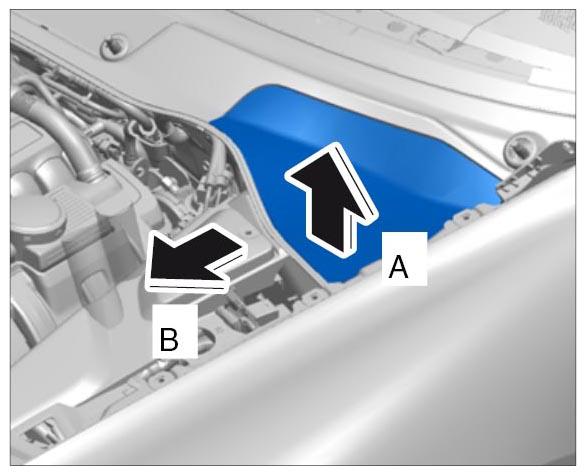

Fig 1: Unclipping Left Cover Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift right cover flap -A- and unclip it by pulling it forward -B- .

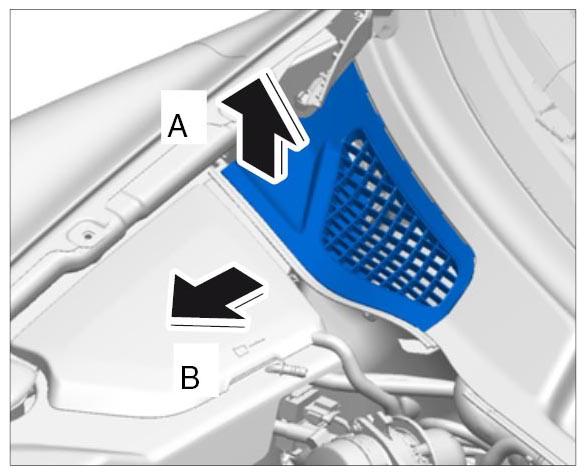

Fig 2: Unclipping Right Cover Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift cowl panel cover -1- at the sides using a plastic wedge -arrow- and unclip it from the attachment strip -2- .

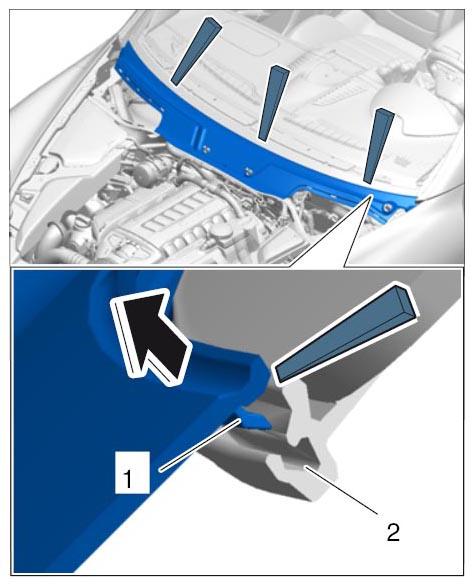

Fig 3: Unclipping Cowl Panel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
