Installing Sun Blind

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

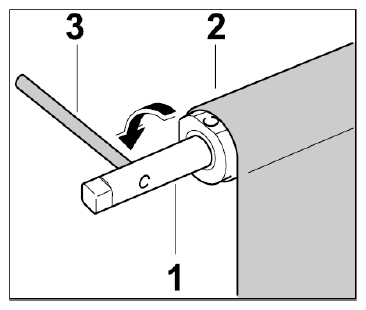

Tension tensioning axle -1- on sun blind -2- by turning it 17 turns anti-clockwise using a steel pin with Ø = 2.5 mm -3- .

Fig 1: Tensioning Sun Blind
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

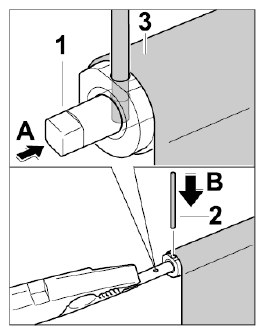

Hold the square with a universal pliers and press it into the tensioning axle -1- (-Arrow A- ). In the slotted opening on the sun blind -3- , lock the tensioning axle with the steel pin -2- (-Arrow B- ).

Fig 2: Locking Tensioning Axle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

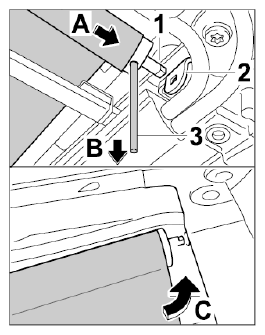

Guide right side of tensioning axle -1- into the mounting saddle -2- (-Arrow A- ). Pull out the steel pin -3- (-Arrow B- ) and guide left side of sun blind into the mounting saddle -Arrow C- .

Fig 3: Fitting Sun Blind
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

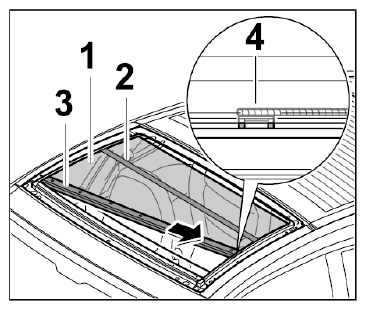

Position sun blind -1- over the support bow bracket -2- . Insert guide strut -3- into the drivers -4- at the left and right and align it at a 90° angle to the roof assembly.

Fig 4: Inserting Guide Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

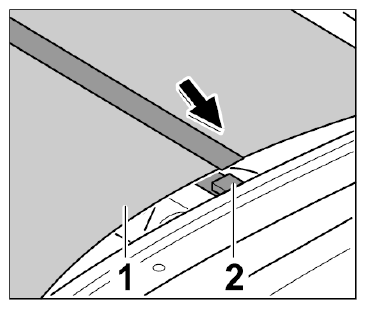

Insert sun blind -1- into the support bow bracket -2- at the left and right.

Fig 5: Engaging Sun Blind
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
