Removing Rear Fabric Lining

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The procedure described here relates to the right fabric lining.

The wire harness for the sun blind is integrated in the left fabric lining. The procedure for removing and installing the left fabric lining is described in the information relating to the wire harness for the sun blind. → WM 975519 REMOVING AND INSTALLING WIRE HARNESS FOR CONVERTIBLE TOP

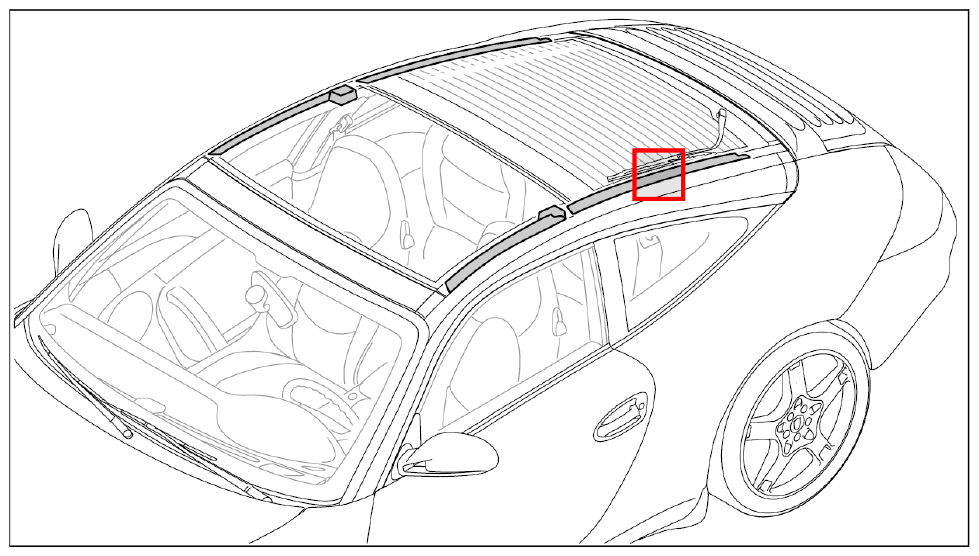

Fig 1: Identifying Fabric Lining Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Detach the rear fabric lining at the drive.
1. 1.1. Cut tie-wrap -1- at the water drain hose -2- . Pull the water drain hose -2- out of the bracket -arrow A- .
2. 1.2. Pull off retainer -3- using a pointed-nose pliers and detach fabric lining -4- at the bolt on the drive -arrow B- .

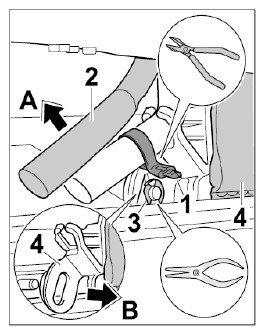

  Fig 2: Detaching Rear Fabric Lining At Drive
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull fabric lining -1- with bottom connection seal backwards out of the guide in -direction of arrow- .

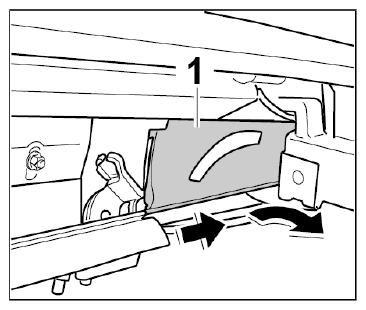

Fig 3: Pulling Bottom Fabric Lining Out Of Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull fabric lining -1- with top connection seal forward out of the guide in -direction of arrow- .

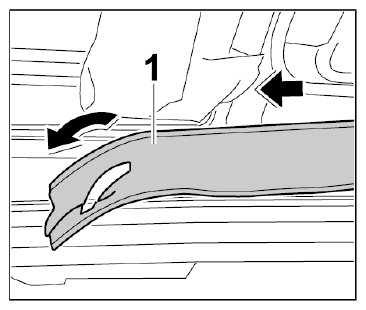

Fig 4: Pulling Top Fabric Lining Out Of Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
