Installing Rear Fabric Lining

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

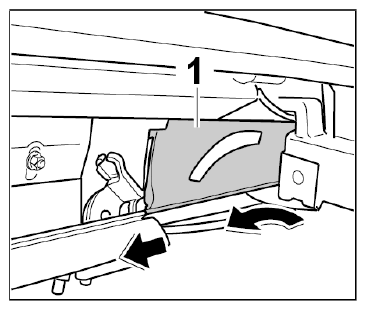

Pull fabric lining -1- with top connection seal backwards into the guide in -direction of arrow- .

Fig 1: Pulling Top Fabric Lining Into Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull fabric lining -1- with bottom connection seal forward into the guide in -direction of arrow- .

Fig 2: Pulling Bottom Fabric Lining Into Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

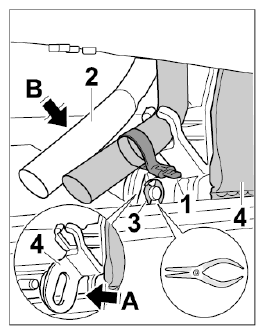

Attach the rear fabric lining at the drive.
1. 3.1. Attach the fabric lining -4- at the bolt on the drive -arrow A- .
2. 3.2. Push the retainer -3- into the groove of the bolt on the drive using a pointed-nose pliers.
3. 3.3. Engage water drain hose -2- in the bracket -arrow B- and secure with a tie-wrap -1- .

  Fig 3: Attaching Rear Fabric Lining At Drive
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
