Detaching Sunroof Motor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

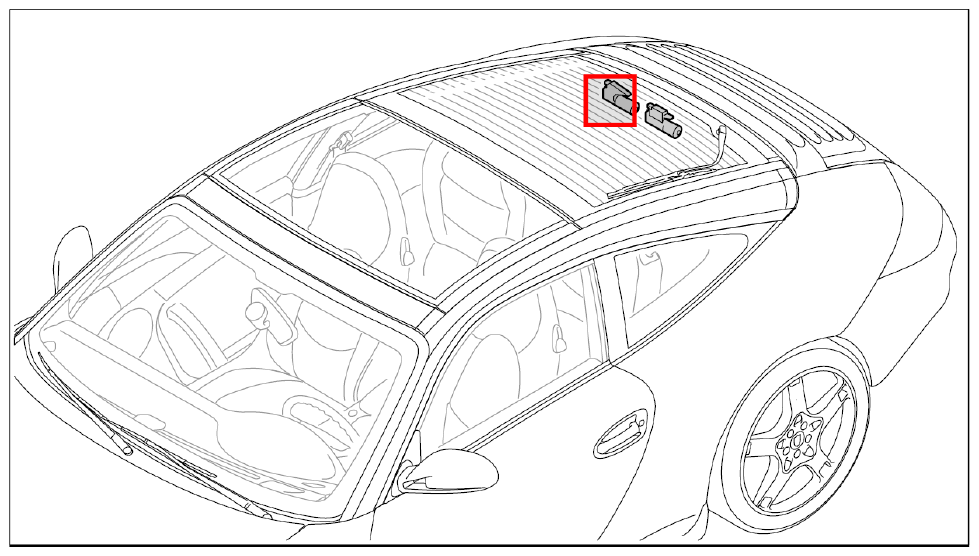

Fig 1: Identifying Sunroof Motor Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

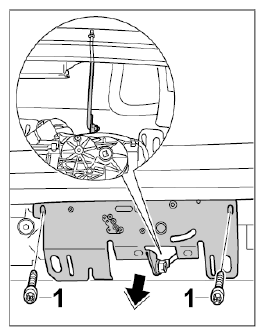

Unscrew fastening screws -1- and fold the closing aid, which is engaged in the strut on the body, forwards.

Fig 2: Folding Closing Aid Over
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

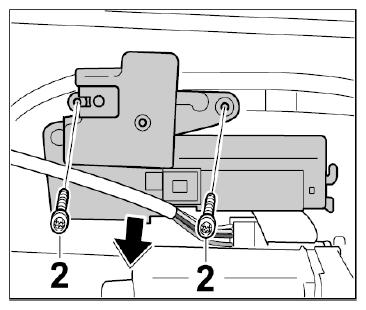

Unscrew fastening screws -2- at the left sunroof motor.

Fig 3: Detaching Left Sunroof Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

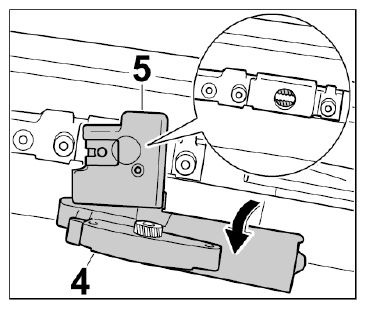

Pull left sunroof motor -4- from behind the bracket -5- out of the drive pipe.

Fig 4: Pulling Out Left Sunroof Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

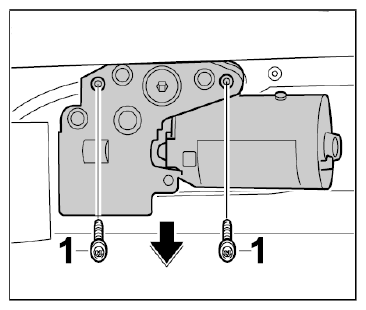

Unscrew fastening screws -1- at the right sunroof motor.

Fig 5: Detaching Right Sunroof Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

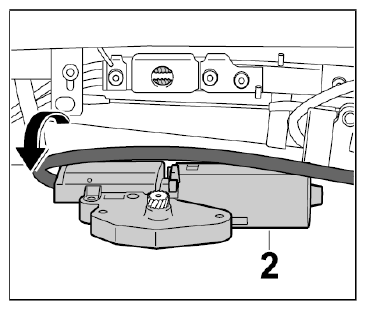

Pull right sunroof motor -2- out of the drive pipe bracket.

Fig 6: Pulling Out Right Sunroof Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
